Malleable iron service tee
- Certificate: UL Listed / FM Approved
- Standard: ASME B16.3
- Material: Malleable iron ASTM A197
- Thread: NPT
- W. pressure: Class 150, 300 psi (-29°C to 66°C)
- Surface: Black iron / hot dip galvanized

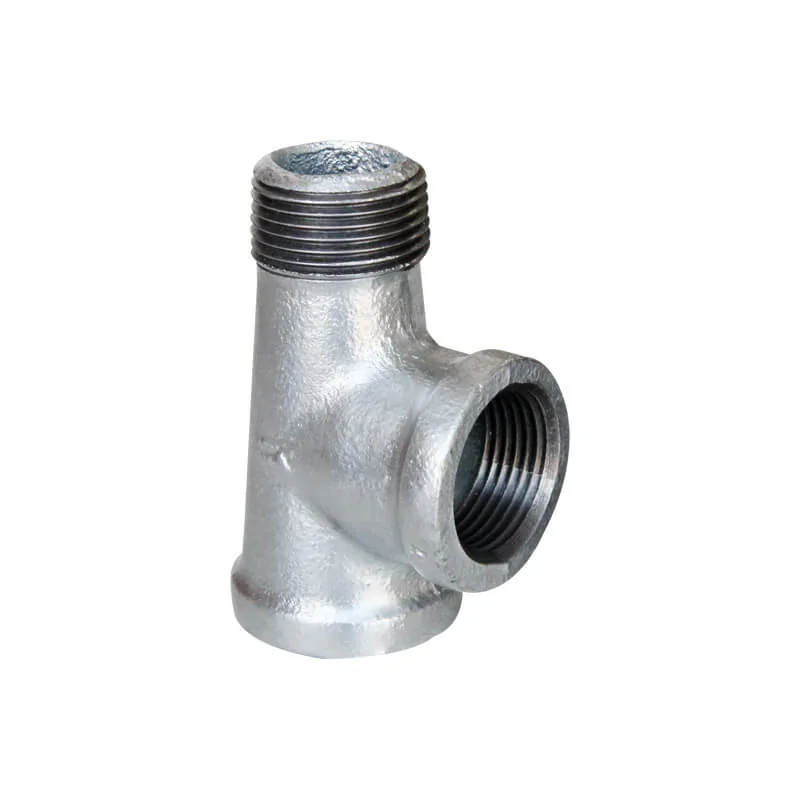

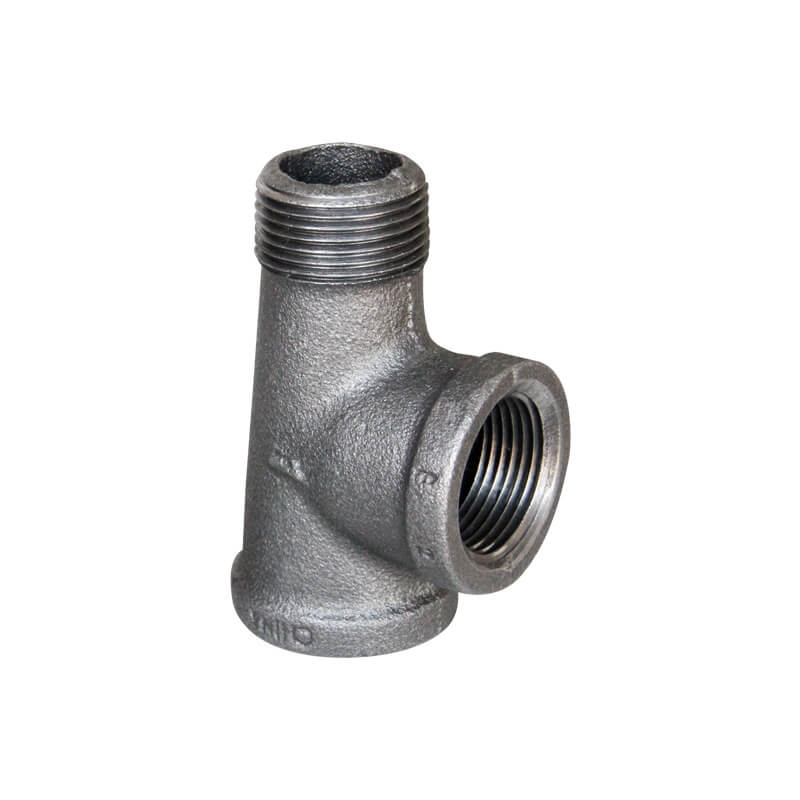

Malleable iron service tee has a T shape to get its name. The branch outlet has the same size with female thread to one main outlet, and another main outlet is same size but with male thread. It is used to create a branch pipeline to 90 degree direction.
