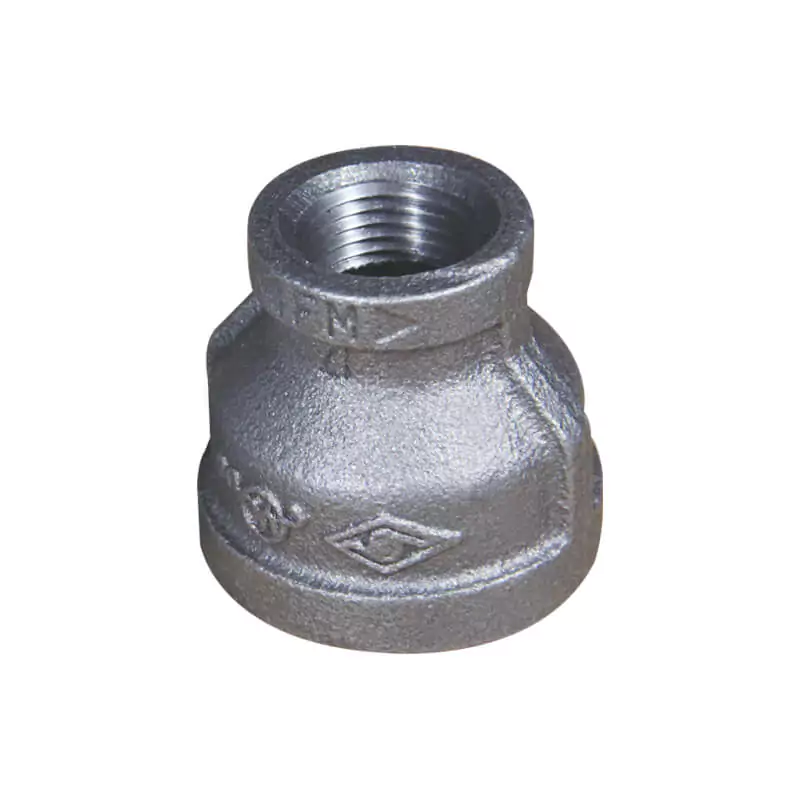

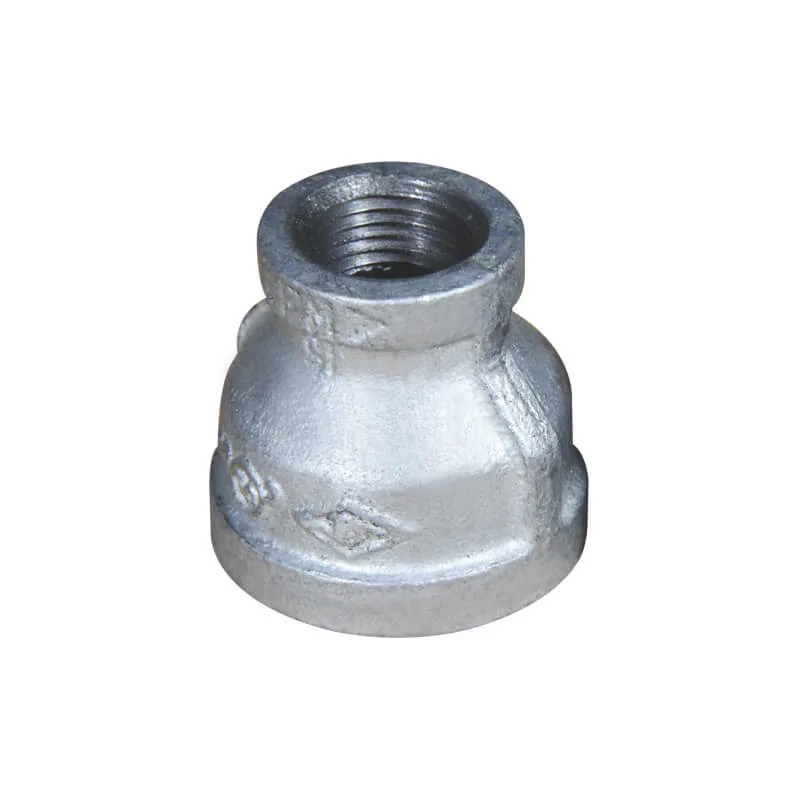

Malleable cast iron reducing socket (Reducing coupling / Reducer) is cone-shaped pipe fitting with female threaded connection, and it is used to join two pipes of different size at the same axis.
Available size
| Size |
A (mm) |
Ref. No. |
| 3/8″ x 1/4″ / DN10 x DN8 / 17.2mm x 13.5mm |
30 |
M2403 (UL/FM) |
| 1/2″ x 1/4″ / DN15 x DN8 / 21.3mm x 13.5mm |
36 |
M2405 (UL/FM) |
| 1/2″ x 3/8″ / DN15 x DN10 / 21.3mm x 17.2mm |
36 |
M2406 (UL/FM) |
| 3/4″ x 1/4″ / DN20 x DN8 / 26.9mm x 13.5mm |
39 |
M2408 (UL/FM) |
| 3/4″ x 3/8″ / DN20 x DN10 / 26.9mm x 17.2mm |
39 |
M2409 (UL/FM) |
| 3/4″ x 1/2″ / DN20 x DN15 / 26.9mm x 21.3mm |
39 |
M2410 (UL/FM) |
| 1″ x 3/8″ / DN25 x DN10 / 33.7mm x 17.2mm |
45 |
M2412 (UL/FM) |
| 1″ x 1/2″ / DN25 x DN15 / 33.7mm x 21.3mm |
45 |
M2413 (UL/FM) |
| 1″ x 3/4″ / DN25 x DN20 / 33.7mm x 26.9mm |
45 |
M2414 (UL/FM) |
| 1-1/4″ x 1/2″ / DN32 x DN15 / 42.4mm x 21.3mm |
50 |
M2416 (UL/FM) |
| 1-1/4″ x 3/4″ / DN32 x DN20 / 42.4mm x 26.9mm |
50 |
M2417 (UL/FM) |
| 1-1/4″ x 1″ / DN32 x DN25 / 42.4mm x 33.7mm |
50 |
M2418 (UL/FM) |
| 1-1/2″ x 1/2″ / DN 40 x DN15 / 48.3mm x 21.3mm |
55 |
M2421 (UL/FM) |
| 1-1/2″ x 3/4″ / DN 40 x DN20 / 48.3mm x 26.9mm |
55 |
M2422 (UL/FM) |
| 1-1/2″ x 1″ / DN 40 x DN25 / 48.3mm x 33.7mm |
55 |
M2423 (UL/FM) |
Note: Please download our catalog for more available sizes.
