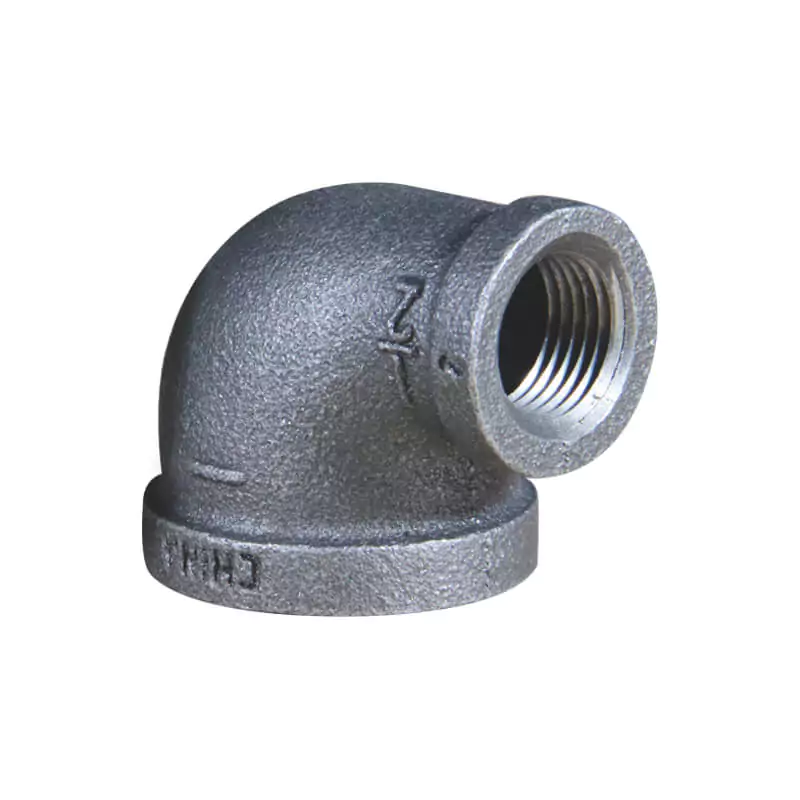

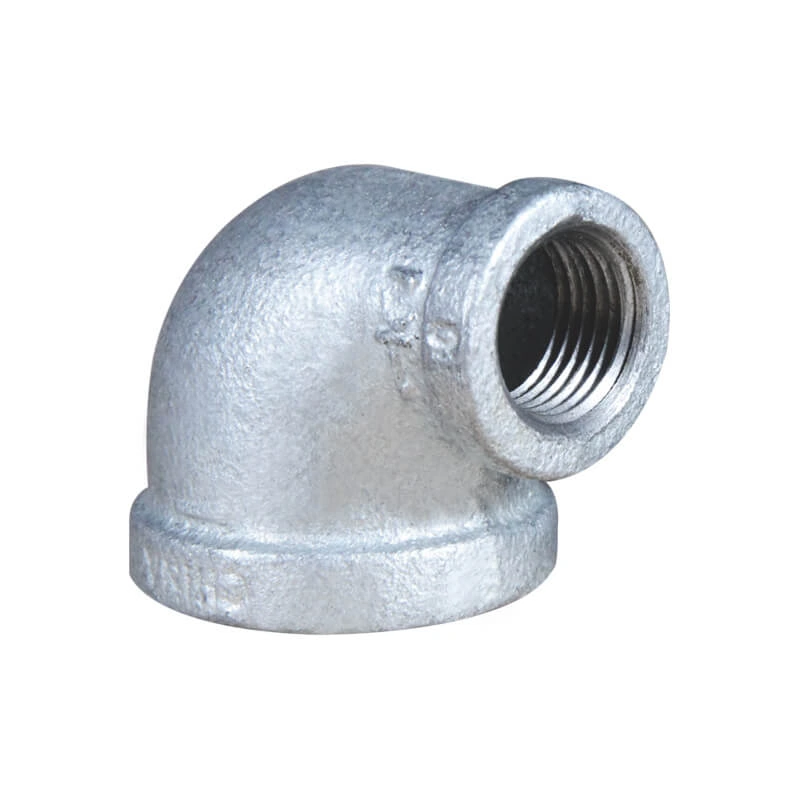

Malleable cast iron 90° reducing elbow is used to connect two pipes of different size by threaded connection, so to make the pipeline turn 90 degree for changing the fluid flow direction.
Available size
| Size |
A (mm) |
Ref. No. |
| 1/2″ x 3/8″ / DN15 x DN10 / 21.3mm x 17.2mm |
26 |
M0206 (UL/FM) |
| 3/4″ x 3/8″ / DN20 x DN10 / 26.9mm x 17.2mm |
28 |
M0207 (UL/FM) |
| 3/4″ x 1/2″ / DN20 x DN15 / 26.9mm x 21.3mm |
30 |
M0208 (UL/FM) |
| 1″ x 3/8″ / DN25 x DN10 / 33.7mm x 17.2mm |
30 |
M0209 (UL/FM) |
| 1″ x 1/2″ / DN25 x DN15 / 33.7mm x 21.3mm |
32 |
M0210 (UL/FM) |
| 1″ x 3/4″ / DN25 x DN20 / 33.7mm x 26.9mm |
35 |
M0211 (UL/FM) |
| 1-1/4″ x 3/8″ / DN32 x DN10 / 42.4mm x 17.2mm |
32 |
M0212 (UL/FM) |
| 1-1/4″ x 1/2″ / DN32 x DN15 / 42.4mm x 21.3mm |
32 |
M0213 (UL/FM) |
| 1-1/4″ x 3/4″ / DN32 x DN20 / 42.4mm x 26.9mm |
36 |
M0214 (UL/FM) |
| 1-1/4″ x 1″ / DN32 x DN25 / 42.4mm x 33.7mm |
40 |
M0215 (UL/FM) |
| 1-1/2″ x 1/2″ / DN40 x DN15 / 48.3mm x 21.3mm |
34 |
M0216 (UL/FM) |
| 1-1/2″ x 3/4″ / DN40 x DN20 / 48.3mm x 26.9mm |
37 |
M0217 (UL/FM) |
| 1-1/2″ x 1″ / DN40 x DN25 / 48.3mm x 33.7mm |
42 |
M0218 (UL/FM) |
| 1-1/2″ x 1-1/4″ / DN40 x DN32 / 48.3mm x 42.4mm |
46 |
M0219 (UL/FM) |
| 2″ x 1/2″ / DN50 x DN15 / 60.3mm x 21.3mm |
35 |
M0220 (UL/FM) |
Note: Please download our catalog for more available sizes.
