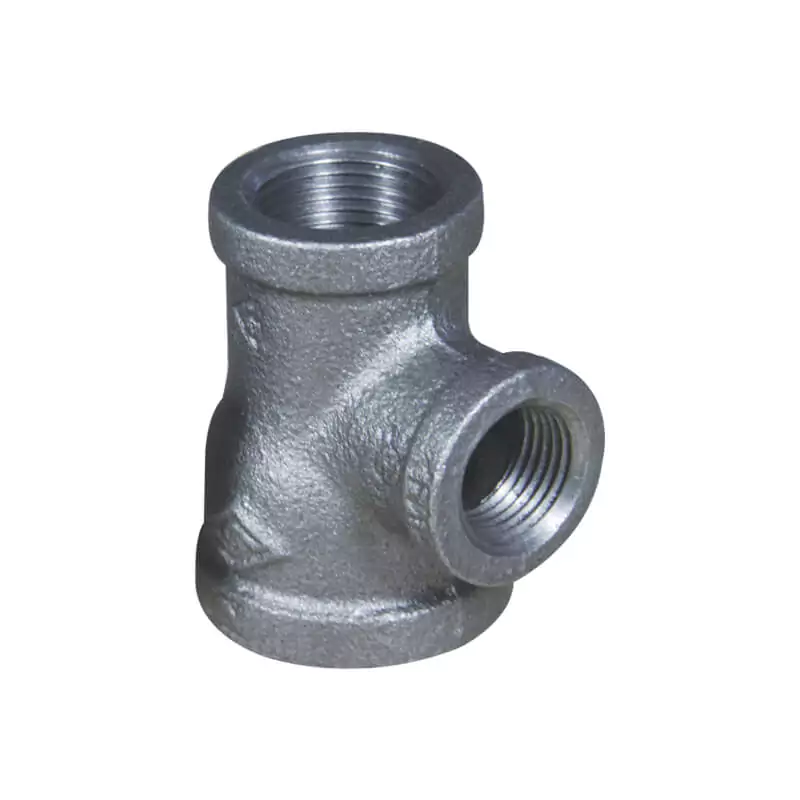

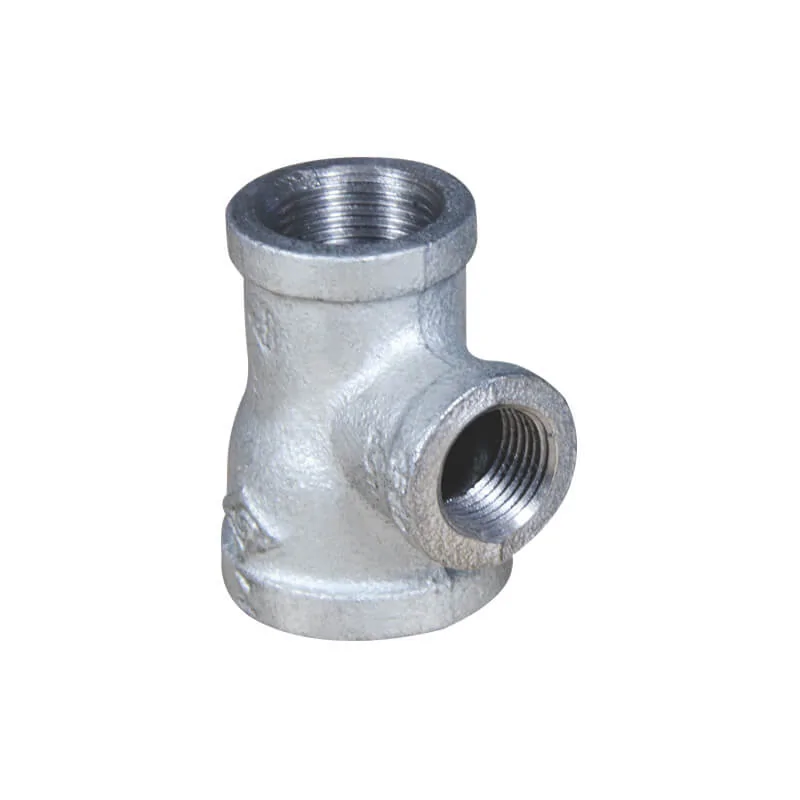

Malleable iron reducing tee (Unequal 3 ways) has a T shape to get its name. Each size of 3 ways is different, and it is used to create a branch pipeline to 90-degree direction.
Available size
| Size (1 x 3 x 2) |
A (mm) |
B (mm) |
Ref. No. |
| 1″ x 1/2″ x 3/4″ / DN25 x DN15 x DN20 / 33.4mm x 21.3mm x 26.7mm |
32.0 |
35.5 |
M6401 (UL/FM) |
| 1-1/4″ x 3/4″ x 1/2″ / DN32 x DN20 x DN15 / 42.2mm x 26.7mm x 21.3mm |
35.0 |
38.0 |
M6402 (FM) |
| 1-1/4″ x 1″ x 1/2″ / DN32 x DN25 x DN15 / 42.2mm x 33.4mm x 21.3mm |
34.0 |
38.9 |
M6403 (UL/FM) |
| 1-1/4″ x 1/2″ x 1″ / DN32 x DN15 x DN25 / 42.2mm x 21.3mm x 33.4mm |
40.1 |
42.4 |
M6404 (UL/FM) |
| 1-1/4″ x 1″ x 3/4″ / DN32 x DN25 x DN20 / 42.2mm x 33.4mm x 26.7mm |
36.8 |
41.2 |
M6405 (UL/FM) |
| 1-1/4″ x 3/4″ x 1″ / DN32 x DN20 x DN25 / 42.2mm x 26.7mm x 33.4mm |
40.1 |
42.4 |
M6406 (UL/FM) |
| 1-1/2″ x 1/2″ x 1″ / DN40 x DN15 x DN25 / 48.3mm x 21.3mm x 33.4mm |
37.0 |
41.0 |
M6407 (FM) |
| 1-1/2″ x 1-1/4″ x 3/4″ / DN40 x DN32 x DN20 / 48.3mm x 42.2mm x 26.7mm |
44.0 |
47.0 |
M6408 (FM) |
| 1-1/2″x 3/4″ x 1-1/4″ / DN40 x DN20 x DN32 / 48.3mm x 26.7mm x 42.2mm |
38.6 |
44.5 |
M6409 (FM) |
| 1-1/2″ x 1-1/4″ x 1″ / DN40 x DN32 x DN25 / 48.3mm x 42.2mm x 33.4mm |
41.9 |
45.7 |
M6410 (UL/FM) |
| 1-1/2″ x 1″ x 1-1/4″ / DN40 x DN25 x DN32 / 48.3mm x 33.4mm x 42.2mm |
46.0 |
48.0 |
M6411 (UL/FM) |
| 2″ x 1″ x 1-1/2″ / DN50 x DN25 x DN40 / 60.3mm x 33.4mm x 48.3mm |
51.3 |
54.9 |
M6412 (UL/FM) |
| 2″ x 1-1/2″ x 1″ / DN50 x DN40 x DN25 / 60.3mm x 48.3mm x 33.4mm |
43.9 |
51.3 |
M6413 (UL/FM) |
| 2″ x 1-1/2″ x 1-1/4″ / DN50 x DN40 x DN32 / 60.3mm x 48.3mm x 42.2mm |
48.3 |
53.3 |
M6414 (UL/FM) |
| 2″ x 1-1/4″ x 1-1/2″ / DN50 x DN32 x DN40 / 60.3mm x 42.2mm x 48.3mm |
51.3 |
54.9 |
M6415 (UL/FM) |
