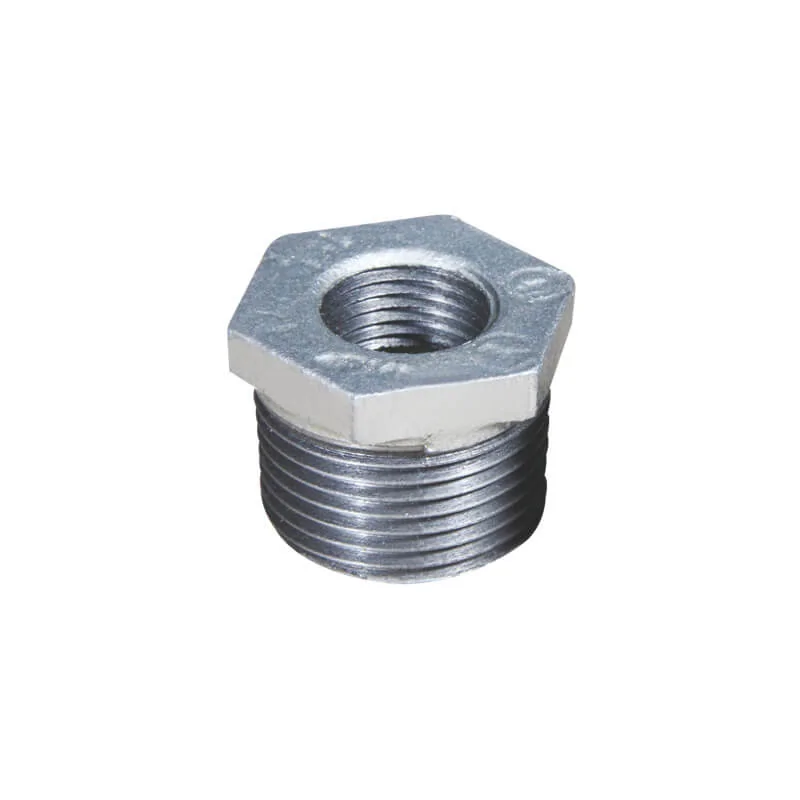

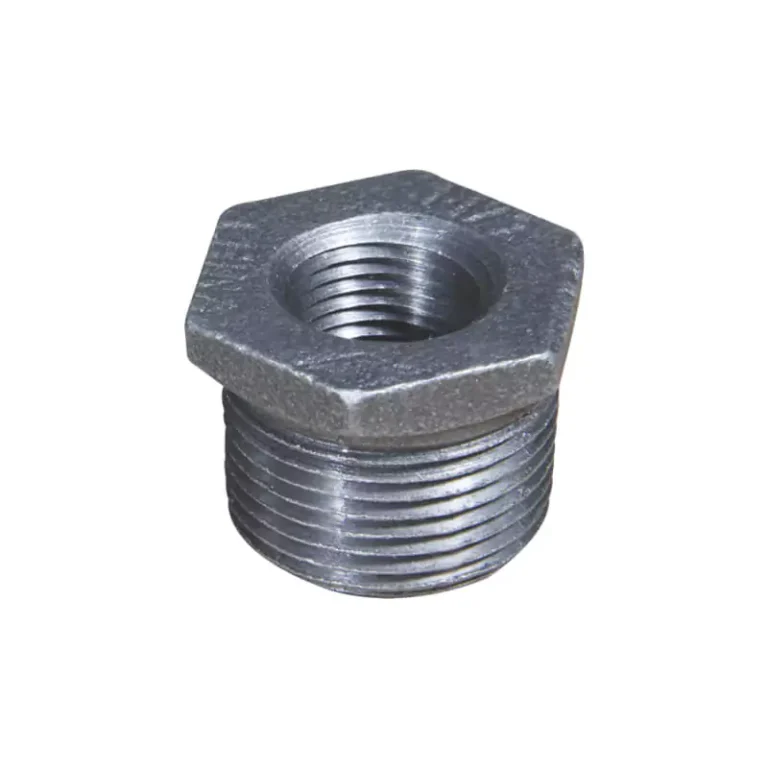

Malleable cast iron bushing is a hex-head pipe fittings with both male and female threaded connections, and it is used to join two pipes with different size.
Available size
| Size |
A (mm) |
Ref. No. |
| 1/4″ x 1/8″ / DN8 x DN6 / 13.5mm x 10.2mm |
20 |
M2801 (UL/FM) |
| 3/8″ x 1/8″ / DN10 x DN6 / 17.2mm x 10.2mm |
20 |
M2802 (UL/FM) |
| 3/8″ x 1/4″ / DN10 x DN8 / 17.2mm x 13.5mm |
20 |
M2803 (UL/FM) |
| 1/2″ x 1/8″ / DN15 x DN6 / 21.3mm x 10.2mm |
24 |
M2804 (UL/FM) |
| 1/2″ x 1/4″ / DN15 x DN8 / 21.3mm x 13.5mm |
24 |
M2805 (UL/FM) |
| 1/2″ x 3/8″ / DN15 x DN10 / 21.3mm x 17.2mm |
24 |
M2806 (UL/FM) |
| 3/4″ x 1/8″ / DN20 x DN6 / 26.9mm x 10.2mm |
26 |
M2807 (UL/FM) |
| 3/4″ x 1/4″ / DN20 x DN8 / 26.9mm x 13.5mm |
26 |
M2808 (UL/FM) |
| 3/4″ x 3/8″ / DN20 x DN10 / 26.9mm x 17.2mm |
26 |
M2809 (UL/FM) |
| 3/4″ x 1/2″ / DN20 x DN15 / 26.9mm x 21.3mm |
26 |
M2810 (UL/FM) |
| 1″ x 1/4″ / DN25 x DN8 / 33.7mm x 13.5mm |
29 |
M2811 (UL/FM) |
| 1″ x 3/8″ / DN25 x DN10 / 33.7mm x 17.2mm |
29 |
M2812 (UL/FM) |
| 1″ x 1/2″ / DN25 x DN15 / 33.7mm x 21.3mm |
29 |
M2813 (UL/FM) |
| 1″ x 3/4″ / DN25 x DN20 / 33.7mm x 26.9mm |
29 |
M2814 (UL/FM) |
| 1-1/4″ x 3/8″ / DN32 x DN10 / 42.4mm x 17.2mm |
31 |
M2815 (UL/FM) |
Note: Please download our catalog for more available sizes.
