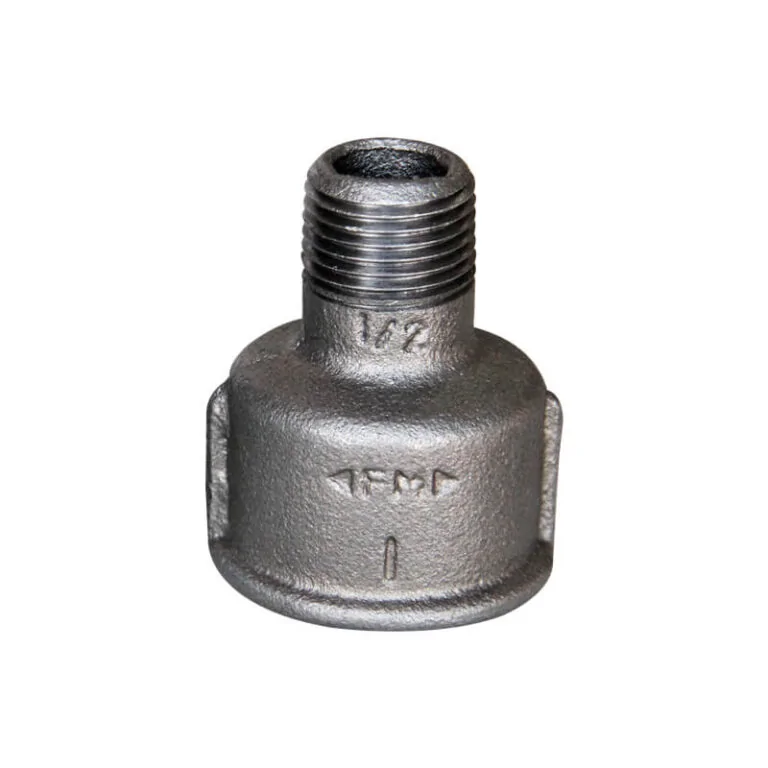

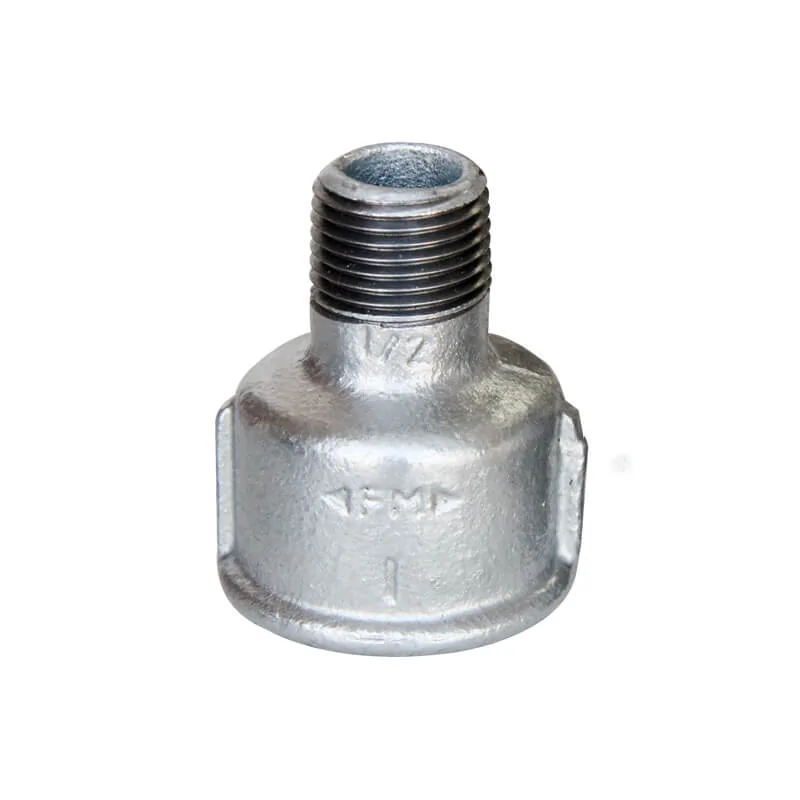

Malleable iron male and female reducing socket is cone-shaped pipe fitting with female and male threaded connection, and it is used to join two pipes of different size at the same axis.
Available size (Class 150)
| Size |
A (mm) |
Ref. No. |
| 3/8″ x 1/4″ / DN10 x DN8 / 17.1mm x 13.7mm |
35 |
M7503 (ISO) |
| 1/2″ x 1/4″ / DN15 x DN8 / 21.3mm x 13.7mm |
43 |
M7505 (ISO) |
| 1/2″ x 3/8″ / DN15 x DN10 / 21.3mm x 17.1mm |
43 |
M7506 (ISO) |
| 3/4″ x 3/8″ / DN20 x DN10 / 26.7mm x 17.1mm |
48 |
M7509 (ISO) |
| 3/4″ x 1/2″ / DN20 x DN15 / 26.7mm x 21.3mm |
48 |
M7510 (ISO) |
| 1″ x 1/2″ / DN25 x DN15 / 33.4mm x 21.3mm |
55 |
M7513 (ISO) |
| 1″ x 3/4″ / DN25 x DN20 / 33.4mm x 26.7mm |
55 |
M7514 (ISO) |
| 1-1/4″ x 1/2″ / DN32 x DN15 / 42.2mm x 21.3mm |
60 |
M7516 (ISO) |
| 1-1/4″ x 3/4″ / DN32 x DN20 / 42.2mm x 26.7mm |
60 |
M7517 (ISO) |
| 1-1/4″ x 1″ / DN32 x DN25 / 42.2mm x 33.4mm |
60 |
M7518 (ISO) |
| 1-1/2″ x 3/4″ / DN40 x DN20 / 48.3mm x 26.7mm |
63 |
M7522 (ISO) |
| 1-1/2″ x 1″ / DN40 x DN25 / 48.3mm x 33.4mm |
63 |
M7523 (ISO) |
| 1-1/2″ x 1-1/4″ / DN40 x DN32 / 48.3mm x 42.2mm |
63 |
M7524 (ISO) |
| 2″ x 1″ / DN50 x DN25 / 60.3mm x 33.4mm |
70 |
M7529 (ISO) |
| 2″ x 1-1/4″ / DN50 x DN32 / 60.3mm x 42.2mm |
70 |
M7530 (ISO) |
| 2″ x 1-1/2″ / DN50 x DN40 / 60.3mm x 48.3mm |
70 |
M7531 (ISO) |
