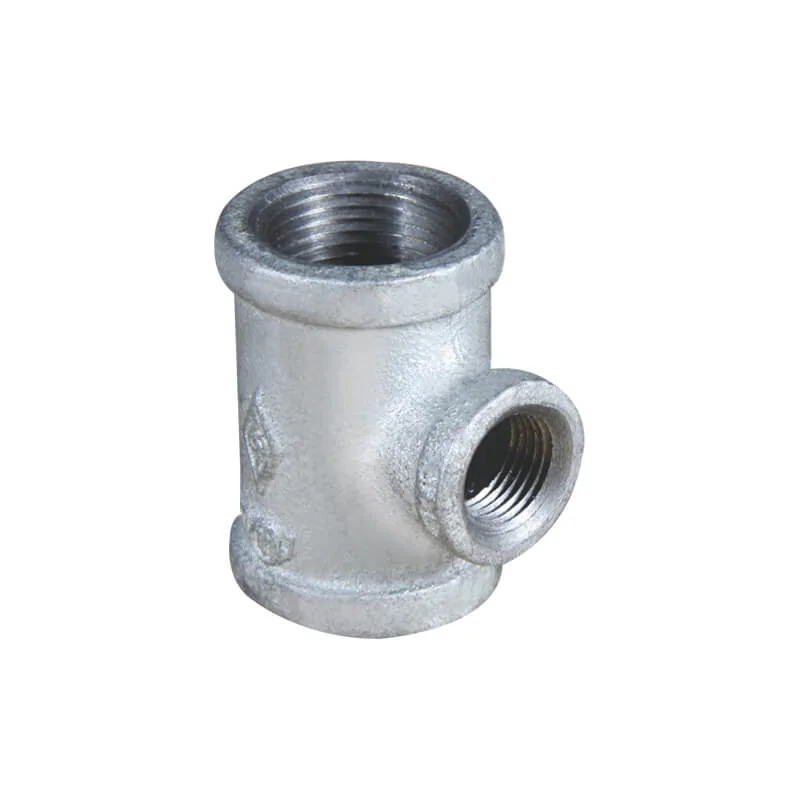

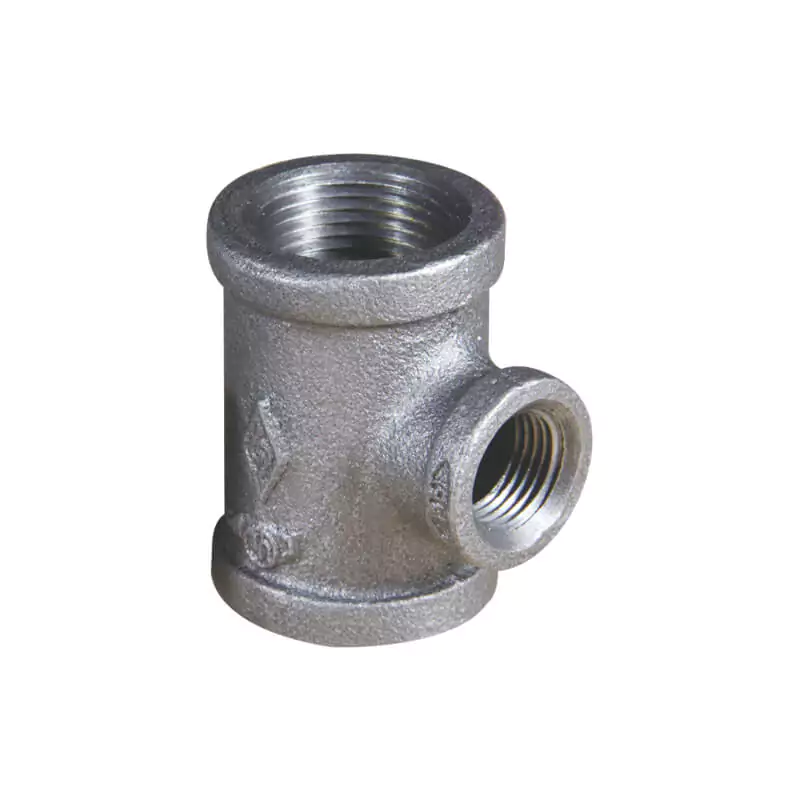

Malleable cast iron unequal tee (Reducing tee) has a T shape to get its name. The branch outlet has a smaller size than the main outlet, and it is used to create a branch pipeline to 90 degree direction.
Available size
| Size |
A (mm) |
Ref. No. |
| 3/4″ x 3/4″ x 1/2″ / DN20 x DN20 x DN15 / 26.9mm x 26.9mm x 21.3mm |
30 |
M1010 (UL/FM) |
| 1″ x 1″ x 3/8″ / DN25 x DN25 x DN10 / 33.7mm x 33.7mm x 17.2mm |
30 |
M1012 (UL/FM) |
| 1″ x 1″ x 1/2″ / DN25 x DN25 x DN15 / 33.7mm x 33.7mm x 21.3mm |
32 |
M1013 (UL/FM) |
| 1″ x 1″ x 3/4″ / DN25 x DN25 x DN20 / 33.7mm x 33.7mm x 26.9mm |
35 |
M1014 (UL/FM) |
| 1-1/4″ x 1-1/4″ x 3/8″ / DN32 x DN32 x DN10 / 42.4mm x 42.4mm x 17.2mm |
32 |
M1015 (UL/FM) |
| 1-1/4″ x 1-1/4″ x 1/2″ / DN32 x DN32 x DN15 / 42.4mm x 42.4mm x 21.3mm |
34 |
M1016 (UL/FM) |
| 1-1/4″ x 1-1/4″ x 3/4″ / DN32 x DN32 x DN20 / 42.4mm x 42.4mm x 26.9mm |
36 |
M1017 (UL/FM) |
| 1-1/4″ x 1-1/4″ x 1″ / DN32 x DN32 x DN25 / 42.4mm x 42.4mm x 33.7mm |
40 |
M1018 (UL/FM) |
| 1-1/2″ x 1-1/2″ x 1/2″ / DN40 x DN40 x DN15 / 48.3mm x 48.3mm x 21.3mm |
36 |
M1021 (UL/FM) |
| 1-1/2″ x 1-1/2″ x 3/4″ / DN40 x DN40 x DN20 / 48.3mm x 48.3mm x 26.9mm |
38 |
M1022 (UL/FM) |
| 1-1/2″ x 1-1/2″ x 1″ / DN40 x DN40 x DN25 / 48.3mm x 48.3mm x 33.7mm |
42 |
M1023 (UL/FM) |
| 1-1/2″ x 1-1/2″ x 1-1/4″ / DN40 x DN40 x DN32 / 48.3mm x 48.3mm x 42.4mm |
46 |
M1024 (UL/FM) |
Note: Please download our catalog for more available sizes.
