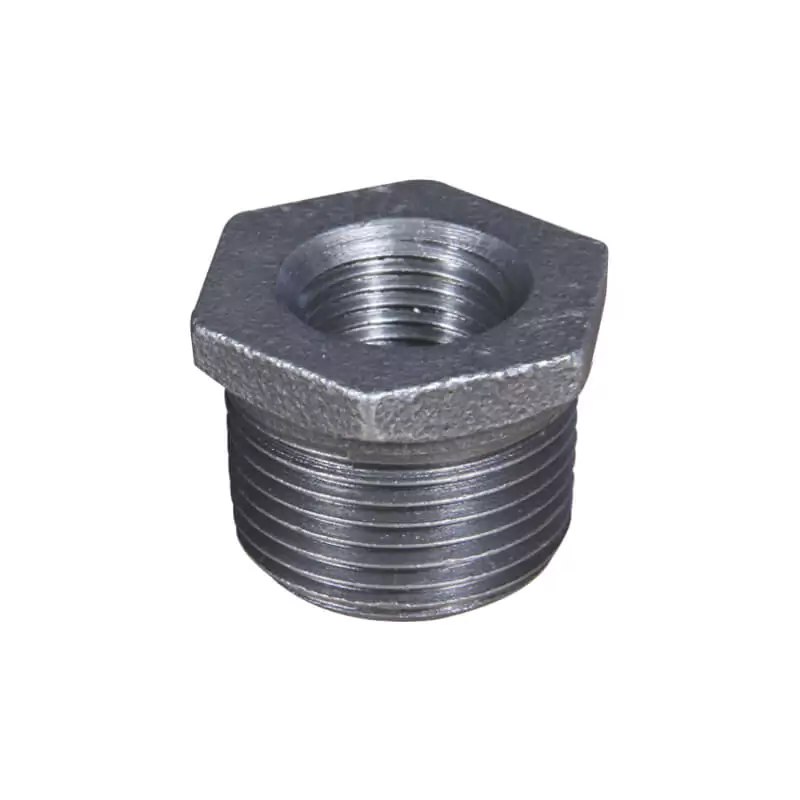

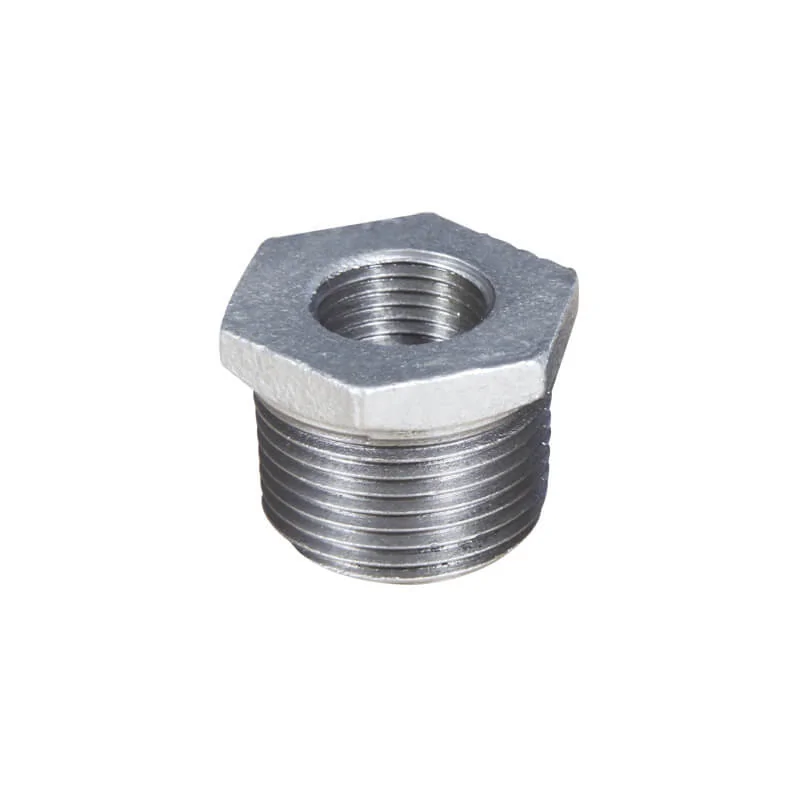

Malleable iron hexagon head bushing (Outside head) is hex-head fitting with both male and female threaded connections, and it is used to join two pipes to change size and threaded type.
Available size (Class 150)
| Size |
A (mm) |
Ref. No. |
| 1/2″ x 1/8″ / DN15 x DN6 / 21.3mm x 10.3mm |
19.0 |
M7804 (UL) |
| 1/2″ x 1/4″ / DN15 x DN8 / 21.3mm x 13.7mm |
19.0 |
M7805 (UL/FM) |
| 1/2″ x 3/8″ / DN15 x DN10 / 21.3mm x 17.1mm |
19.0 |
M7806 (UL/FM) |
| 3/4″ x 1/8″ / DN20 x DN6 / 26.7mm x 10.2mm |
21.6 |
M7807 (UL) |
| 3/4″ x 1/4″ / DN20 x DN8 / 26.7mm x 13.7mm |
21.6 |
M7808 (UL) |
| 3/4″ x 3/8″ / DN20 x DN10 / 26.7mm x 17.1mm |
21.6 |
M7809 (UL/FM) |
| 3/4″ x 1/2″ / DN20 x DN15 / 26.7mm x 21.3mm |
21.6 |
M7810 (UL/FM) |
| 1″ x 1/2″ / DN25 x DN15 / 33.4mm x 21.3mm |
25.5 |
M7813 (UL/FM) |
| 1″ x 3/4″ / DN25 x DN20 / 33.4mm x 26.7mm |
25.5 |
M7814 (UL/FM) |
| 1-1/4″ x 3/4″ / DN32 x DN20 / 42.2mm x 26.7mm |
27.4 |
M7817 (UL/FM) |
| 1-1/4″ x 1″ / DN32 x DN25 / 42.2mm x 33.4mm |
27.4 |
M7818 (UL/FM) |
| 1-1/2″ x 1″ / DN40 x DN25 / 48.3mm x 33.4mm |
29.0 |
M7823 (UL/FM) |
| 1-1/2″ x 1-1/4″ / DN40 x DN32 / 48.3mm x 42.2mm |
29.0 |
M7824 (UL/FM) |
| 2″ x 1-1/4″ / DN50 x DN32 / 60.3mm x 42.2mm |
31.0 |
M7830 (UL/FM) |
| 2″ x 1-1/2″ / DN50 x DN40 / 60.3mm x 48.3mm |
31.0 |
M7831 (UL/FM) |
Note: Please download our catalog for more available sizes.
