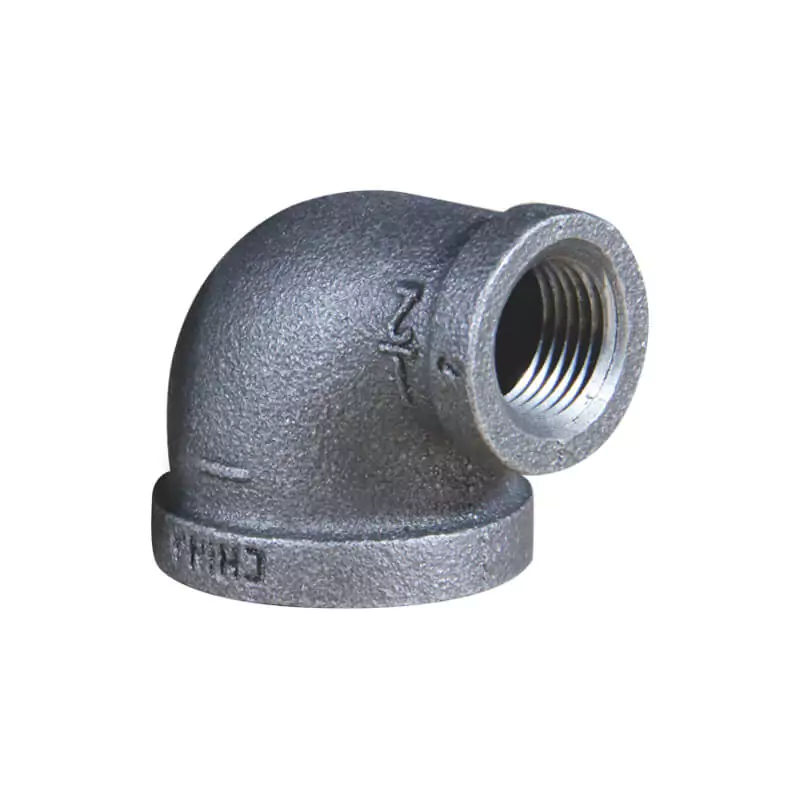

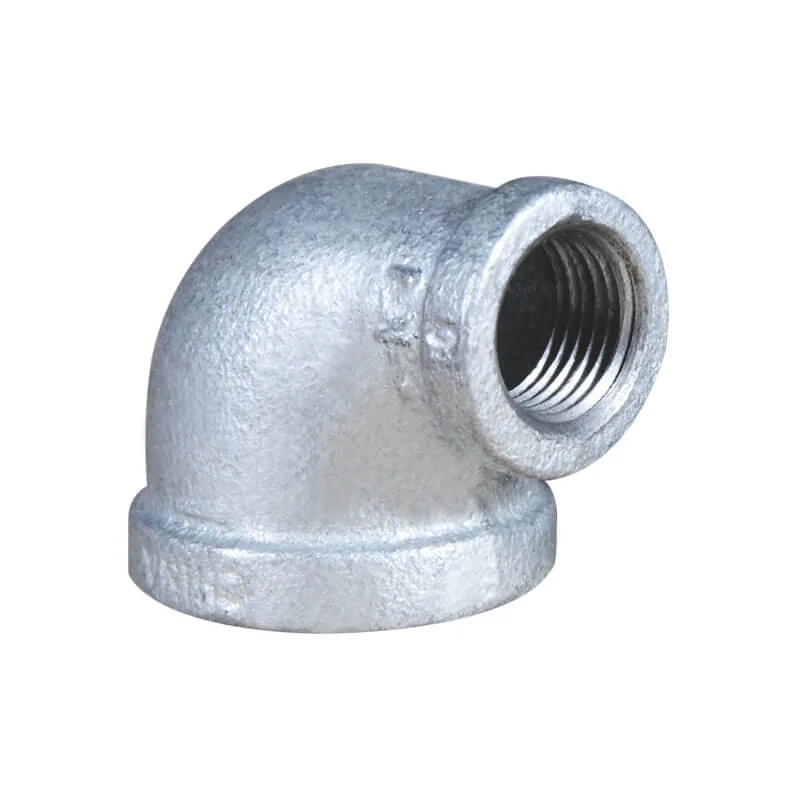

Malleable iron 90° reducing elbow is used to connect two pipes of different size by threaded connection, so to make the pipeline turn 90-degree for changing the fluid flow direction.
Available size (Class 150)
| Size |
A (mm) |
B (mm) |
Ref. No. |
| 1/2″x 3/8″ / DN15 x DN10 / 21.3mm x 17.1mm |
26.4 |
26.2 |
M5206 (UL/FM) |
| 3/4″ x 3/8″ / DN20 x DN10 / 26.7mm x 17.1mm |
28.5 |
28.7 |
M5209 (UL/FM) |
| 3/4″ x 1/2″ / DN20 x DN15 / 26.7mm x 21.3mm |
30.5 |
31.0 |
M5210 (UL/FM) |
| 1″ x 1/4″ / DN25 x DN8 / 33.4mm x 13.7mm |
27.0 |
31.0 |
M5211 (FM) |
| 1″ x 3/8″ / DN25 x DN10 / 33.4mm x 17.1mm |
30.0 |
32.3 |
M5212 (UL/FM) |
| 1″ x 1/2″ / DN25 x DN15 / 33.4mm x 21.3mm |
32.0 |
35.5 |
M5213 (UL/FM) |
| 1″ x 3/4″ / DN25 x DN20 / 33.4mm x 26.7mm |
34.8 |
36.8 |
M5214 (UL/FM) |
| 1-1/4″ x 3/8″ / DN32 x DN10 / 42.2mm x 17.1mm |
32.0 |
36.5 |
M5215 (FM) |
| 1-1/4″ x 1/2″ / DN32 x DN15 / 42.2mm x 21.3mm |
34.0 |
38.9 |
M5216 (UL/FM) |
| 1-1/4″ x 3/4″ / DN32 x DN20 / 42.2mm x 26.7mm |
36.8 |
41.2 |
M5217 (UL/FM) |
| 1-1/4″ x 1″ / DN32 x DN25 / 42.2mm x 33.4mm |
40.1 |
42.4 |
M5218 (UL/FM) |
| 1-1/2″ x 1/2″ / DN40 x DN15 / 48.3mm x 21.3mm |
35.0 |
41.5 |
M5221 (FM) |
| 1-1/2″ x 3/4″ / DN40 x DN20 / 48.3mm x 26.7mm |
38.6 |
44.5 |
M5222 (UL/FM) |
| 1-1/2″ x 1″ / DN40 x DN25 / 48.3mm x 33.4mm |
41.9 |
45.7 |
M5223 (UL/FM) |
| 2″ x 1/2″ / DN50 x DN15 / 60.3mm x 21.3mm |
37.5 |
47.5 |
M5225 (FM) |
Note: Please download our catalog for more available sizes.
