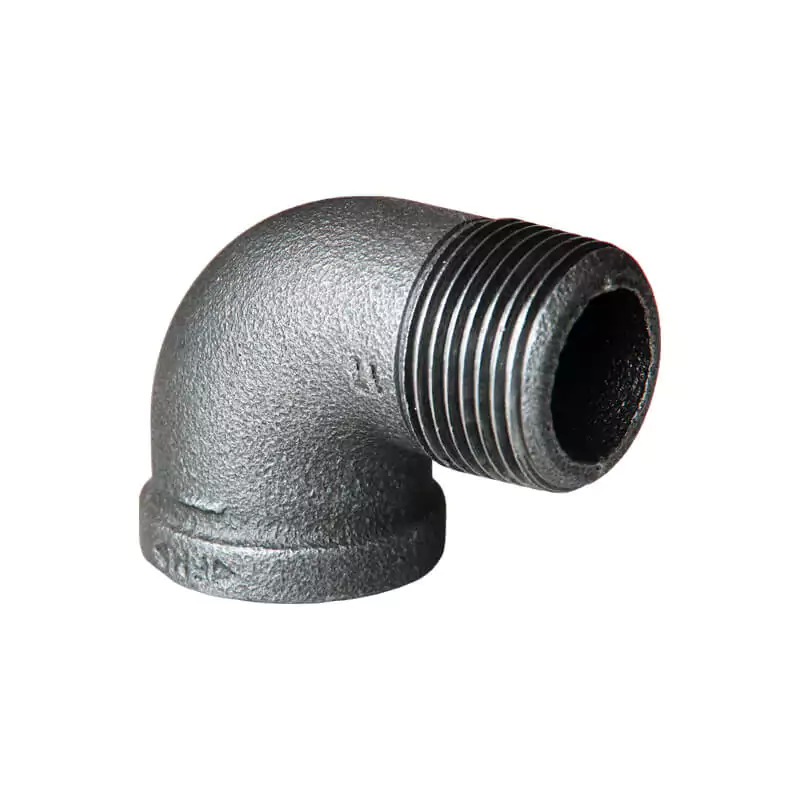

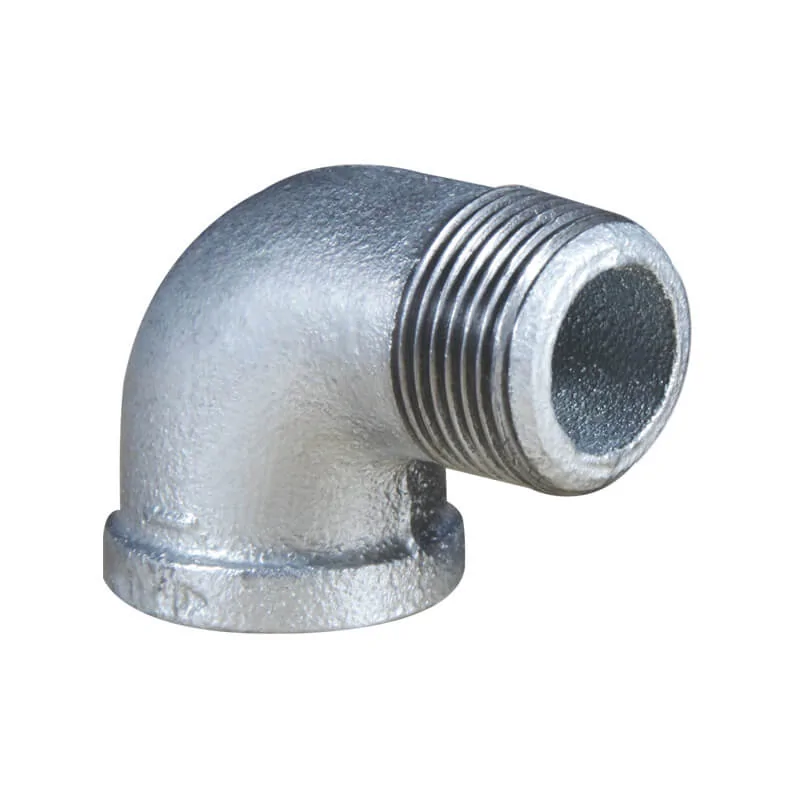

Malleable iron 90° street elbow is used to connect two pipes by male and female threaded connections, so to make the pipeline turn 90-degree for changing the fluid flow direction.
Available size (Class 150)
| Size |
A (mm) |
B (mm) |
Ref. No. |
| 1/2″ / DN15 / 21.3mm |
28.5 |
41.2 |
M5303 (UL/FM) |
| 3/4″ / DN20 / 26.7mm |
33.3 |
48.0 |
M5304 (UL/FM) |
| 1″ / DN25 / 33.4mm |
38.1 |
54.4 |
M5305 (UL/FM) |
| 1-1/4″ / DN32 / 42.2mm |
44.5 |
62.2 |
M5306 (UL/FM) |
| 1-1/2″ / DN40 / 48.3mm |
49.3 |
68.3 |
M5307 (UL/FM) |
| 2″ / DN50 / 60.3mm |
57.2 |
82.8 |
M5308 (UL/FM) |
| 2-1/2″ / DN65 / 73.0mm |
68.6 |
98.0 |
M5309 (UL/FM) |
| 3″ / DN80 / 88.9mm |
78.2 |
114.6 |
M5310 (UL/FM) |
| 4″ / DN100 / 114.3mm |
96.3 |
144.5 |
M5311 (UL/FM) |
| 6″ / DN150 / 168.3mm |
130.3 |
204.0 |
M5313 (UL/FM) |
Available size (Class 300)
| Size |
A (mm) |
B (mm) |
Ref. No. |
| 1/4″ / DN8 / 13.7mm |
23.9 |
36.6 |
M5301-300 (ISO) |
| 3/8″ / DN10 / 17.1mm |
26.9 |
41.4 |
M5302-300 (ISO) |
| 1/2″ / DN15 / 21.3mm |
31.8 |
50.8 |
M5303-300 (ISO) |
| 3/4″ / DN20 / 26.7mm |
36.6 |
55.6 |
M5304-300 (ISO) |
| 1″ / DN25 / 33.4mm |
41.4 |
65.0 |
M5305-300 (ISO) |
| 1-1/4″ / DN32 / 42.2mm |
49.3 |
73.2 |
M5306-300 (ISO) |
| 1-1/2″ / DN40 / 48.3mm |
54.1 |
79.5 |
M5307-300 (ISO) |
| 2″ / DN50 / 60.3mm |
63.5 |
93.7 |
M5308-300 (ISO) |
| 2-1/2″ / DN65 / 73.0mm |
74.7 |
114.3 |
M5309-300 (ISO) |
| 3″ / DN80 / 88.9mm |
85.9 |
130.3 |
M5310-300 (ISO) |
