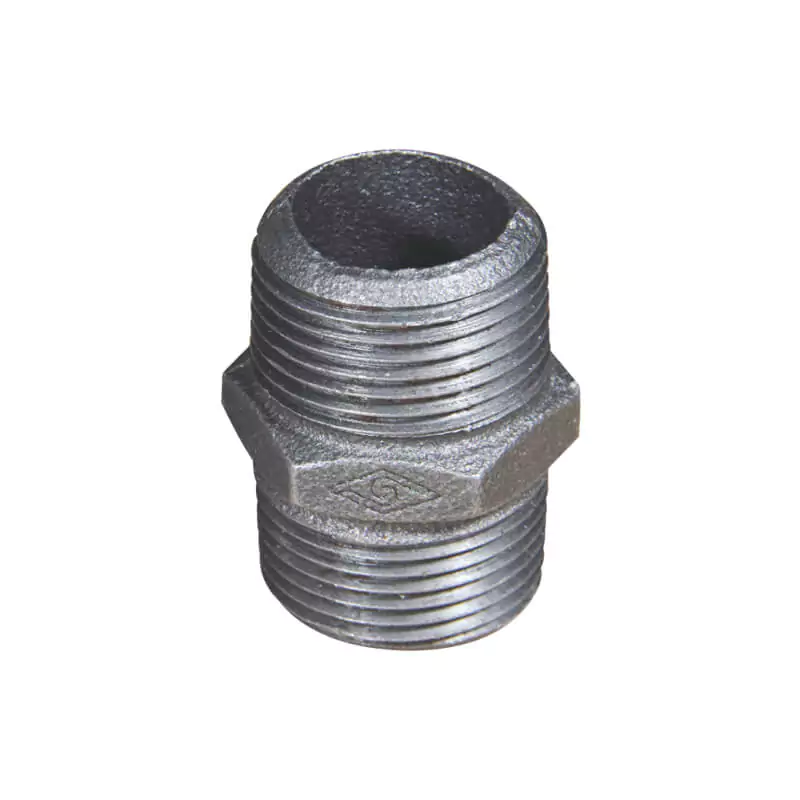

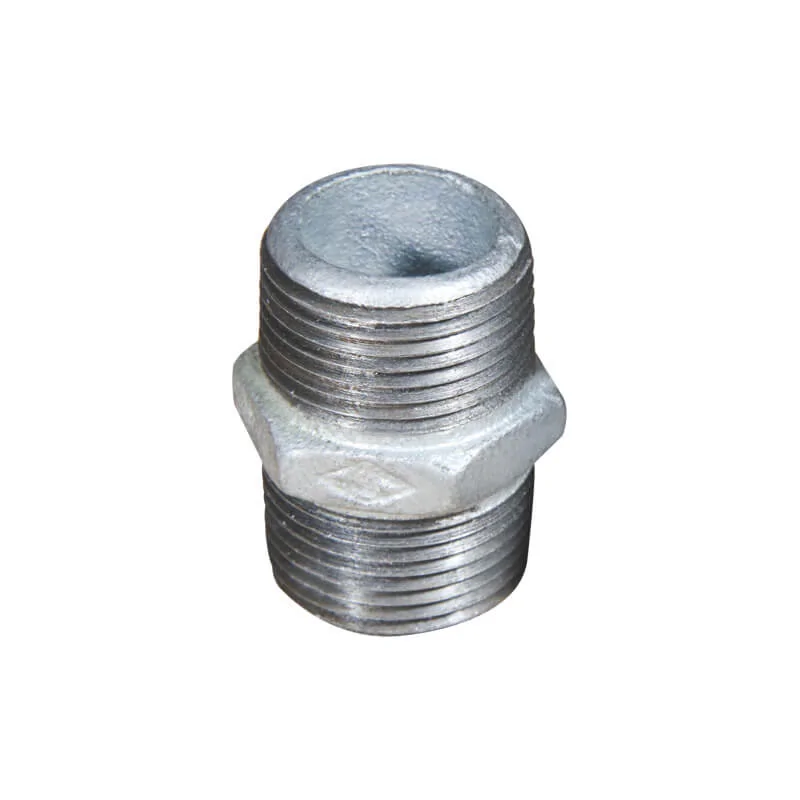

Malleable cast iron reducing hexagon nipple is middle-hex fitting with both male threaded connections, and it is used to join two pipes with different size.
Available size
| Size |
A (mm) |
Ref. No. |
| 1/2″ x 1/4″ / DN15 x DN8 / 21.3mm x 13.5mm |
44 |
M3105 (UL/FM) |
| 1/2″ x 3/8″ / DN15 x DN10 / 21.3mm x 17.2mm |
44 |
M3106 (UL/FM) |
| 3/4″ x 1/4″ / DN20 x DN8 / 26.9mm x 13.5mm |
47 |
M3108 (UL/FM) |
| 3/4″ x 3/8″ / DN20 x DN10 / 26.9mm x 17.2mm |
47 |
M3109 (UL/FM) |
| 3/4″ x 1/2″ / DN20 x DN15 / 26.9mm x 21.3mm |
47 |
M3110 (UL/FM) |
| 1″ x 1/2″ / DN25 x DN15 / 33.7mm x 21.3mm |
53 |
M3113 (UL/FM) |
| 1″ x 3/4″ / DN25 x DN20 / 33.7mm x 26.9mm |
53 |
M3114 (UL/FM) |
| 1-1/4″ x 1/2″ / DN32 x DN15 / 42.4mm x 21.3mm |
57 |
M3116 (UL/FM) |
| 1-1/4″ x 3/4″ / DN32 x DN20 / 42.4mm x 26.9mm |
57 |
M3117 (UL/FM) |
| 1-1/4″ x 1″ / DN32 x DN25 / 42.4mm x 33.7mm |
57 |
M3118 (UL/FM) |
| 1-1/2″ x 1/2″ / DN40 x DN15 / 48.3mm x 21.3mm |
59 |
M3121 (UL/FM) |
| 1-1/2″ x 3/4″ / DN40 x DN20 / 48.3mm x 26.9mm |
59 |
M3122 (UL/FM) |
| 1-1/2″ x 1″ / DN40 x DN25 / 48.3mm x 33.7mm |
59 |
M3123 (UL/FM) |
| 1-1/2″ x 1-1/4″ / DN40 x DN32 / 48.3mm x 42.4mm |
59 |
M3124 (UL/FM) |
| 2″ x 1/2″ / DN50 x DN15 / 60.3mm x 21.3mm |
68 |
M3125 (UL/FM) |
Note: Please download our catalog for more available sizes.
