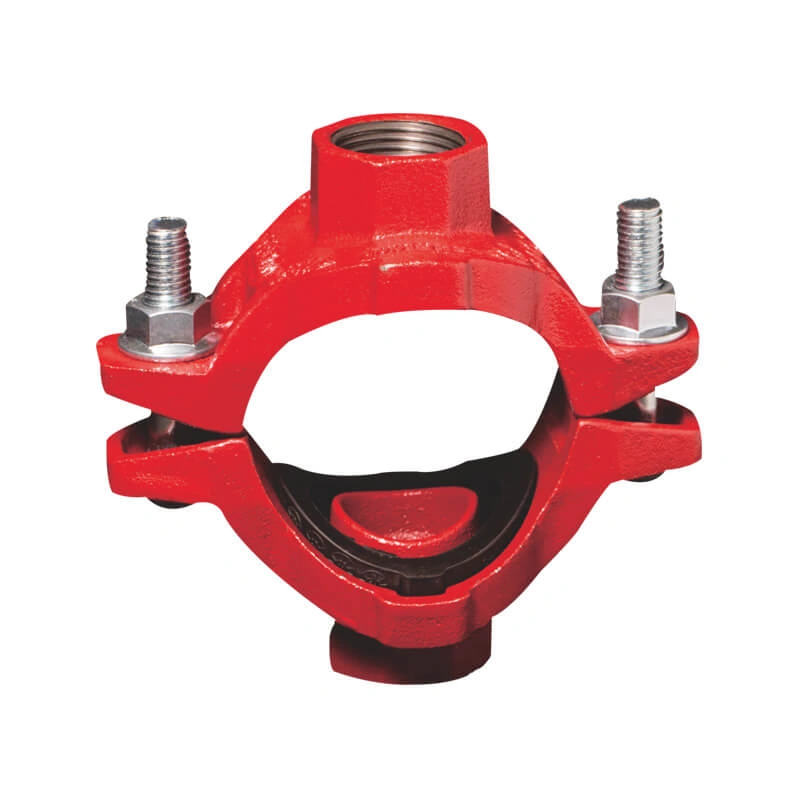

Mechanical cross with threaded branches provides two additional threaded outlets in existing pipeline, by connecting the pre-set holes at the main pipe surface.
Available size
| Size (Inch / DN / mm) |
Bolting (n x bolt size), ANSI |
Bolting (n x bolt size), EN |
Ref. No. |
| 2″ x 1″ / 50 x 25 / 60.3 x 33.7 |
2 – 3/8″ x 55 |
2 – M10 x 57 |
G7901 (UL/FM) |
| 2″ x 1-1/4″ / 50 x 32 / 60.3 x 42.4 |
2 – 3/8″ x 55 |
2 – M10 x 57 |
G7902 (UL/FM) |
| 2″ x 1-1/2″ / 50 x 40 / 60.3 x 48.3 |
2 – 3/8″ x 55 |
2 – M10 x 57 |
G7903 (UL/FM) |
| 2-1/2″ x 3/4″ / 65 x 20 / 73.0 x 26.9 |
2 – 1/2″ x 70 |
2 – M12 x 70 |
G7904 (ISO) |
| 2-1/2″ x 1″ / 65 x 25 / 73.0 x 33.7 |
2 – 1/2″ x 70 |
2 – M12 x 70 |
G7905 (UL/FM) |
| 2-1/2″ x 1-1/4″ / 65 x 32 / 73.0 x 42.4 |
2 – 1/2″ x 70 |
2 – M12 x 70 |
G7906 (UL/FM) |
| 2-1/2″ x 1-1/2″ / 65 x 40 / 73.0 x 48.3 |
2 – 1/2″ x 70 |
2 – M12 x 70 |
G7907 (UL/FM) |
| 2-1/2″ x 1/2″ / 65 x 15 / 76.1 x 21.3 |
2 – 1/2″ x 70 |
2 – M12 x 70 |
G7908 (ISO) |
| 2-1/2″ x 3/4″ / 65 x 20 / 76.1 x 26.9 |
2 – 1/2″ x 70 |
2 – M12 x 70 |
G7909 (ISO) |
| 2-1/2″ x 1″ / 65 x 25 / 76.1 x 33.7 |
2 – 1/2″ x 70 |
2 – M12 x 70 |
G7910 (UL/FM) |
| 2-1/2″ x 1-1/4″ / 65 x 32 / 76.1 x 42.4 |
2 – 1/2″ x 70 |
2 – M12 x 70 |
G7911 (UL/FM) |
| 2-1/2″ x 1-1/2″ / 65 x 40 / 76.1 x 48.3 |
2 – 1/2″ x 70 |
2 – M12 x 70 |
G7912 (FM) |
| 3″ x 1/2″ / 80 x 15 / 88.9 x 21.3 |
2 – 1/2″ x 75 |
2 – M12 x 76 |
G7913 (ISO) |
| 3″ x 3/4″ / 80 x 20 / 88.9 x 26.9 |
2 – 1/2″ x 75 |
2 – M12 x 76 |
G7914 (ISO) |
| 3″ x 1″ / 80 x 25 / 88.9 x 33.7 |
2 – 1/2″ x 75 |
2 – M12 x 76 |
G7915 (UL/FM) |
