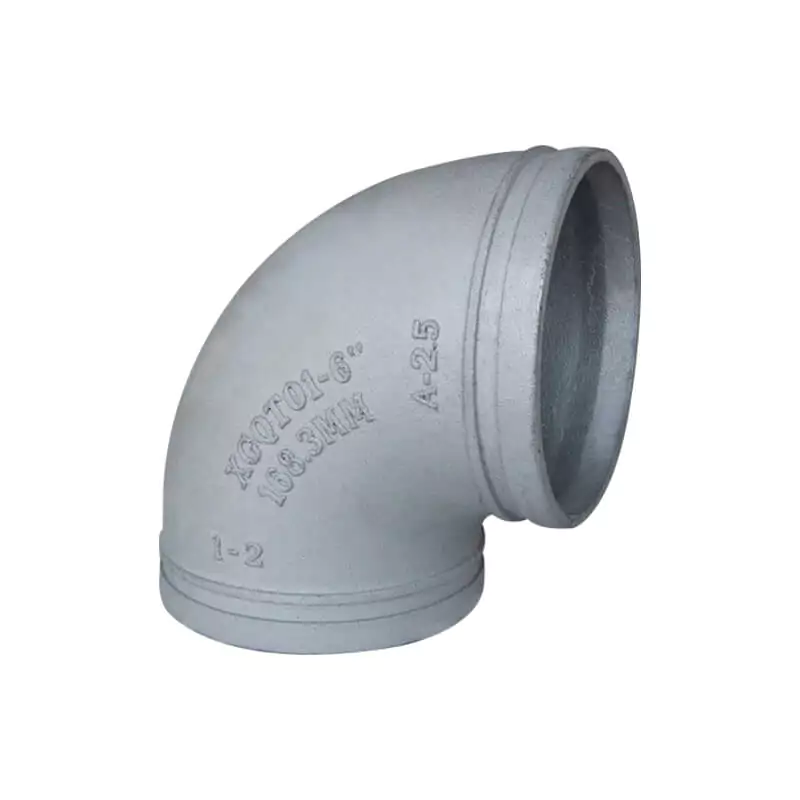

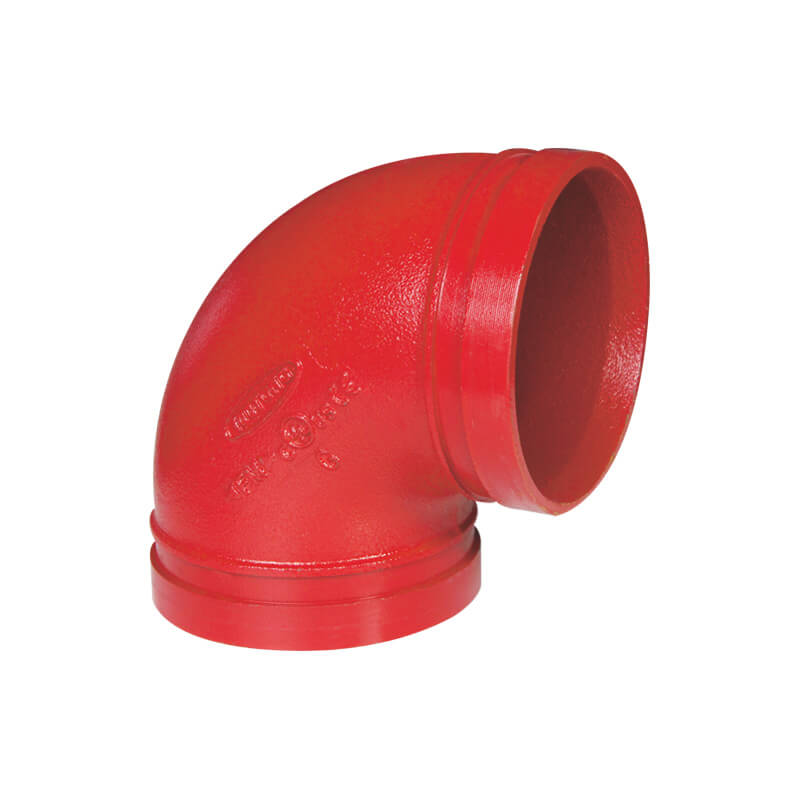

Grooved 90° elbow is used to connect two pipes by groove connection, so to make the pipeline turn 90 degree for changing the fluid flow direction.
Available size
| Size |
Short radius (mm) |
Standard radius (mm) |
Ref. No. |
| 1″ / DN25 / 33.7mm |
57 |
57 |
G0101 (UL/FM) |
| 1-1/4″ / DN32 / 42.4mm |
60 |
70 |
G0102 (UL/FM) |
| 1-1/2″ / DN40 / 48.3mm |
60 |
70 |
G0103 (UL/FM) |
| 2″ / DN50 / 60.3mm |
70 |
83 |
G0104 (UL/FM) |
| 2-1/2″ / DN65 / 73.0mm |
76 |
95 |
G0105 (UL/FM) |
| 2-1/2″ / DN65 / 76.1mm |
76 |
95 |
G0106 (UL/FM) |
| 3″ / DN80 / 88.9mm |
86 |
108 |
G0107 (UL/FM) |
| 4″ / DN100 / 114.3mm |
102 |
127 |
G0108 (UL/FM) |
| 5″ / DN125 / 139.7mm |
122 |
140 |
G0109 (UL/FM) |
| 5″ / DN125 / 141.3mm |
122 |
140 |
G0110 (UL/FM) |
| 6″ / DN150 / 165.1mm |
140 |
165 |
G0111 (UL/FM) |
| 6″ / DN150 / 168.3mm |
140 |
165 |
G0112 (UL/FM) |
| 8″ / DN200 / 219.1mm |
175 |
197 |
G0113 (UL/FM) |
| 10″ / DN250 / 273.0mm |
215 |
229 |
G0114 (UL/FM) |
| 12″ / DN300 / 323.9mm |
245 |
254 |
G0115 (UL/FM) |
Note: Please download our catalog for more available sizes
