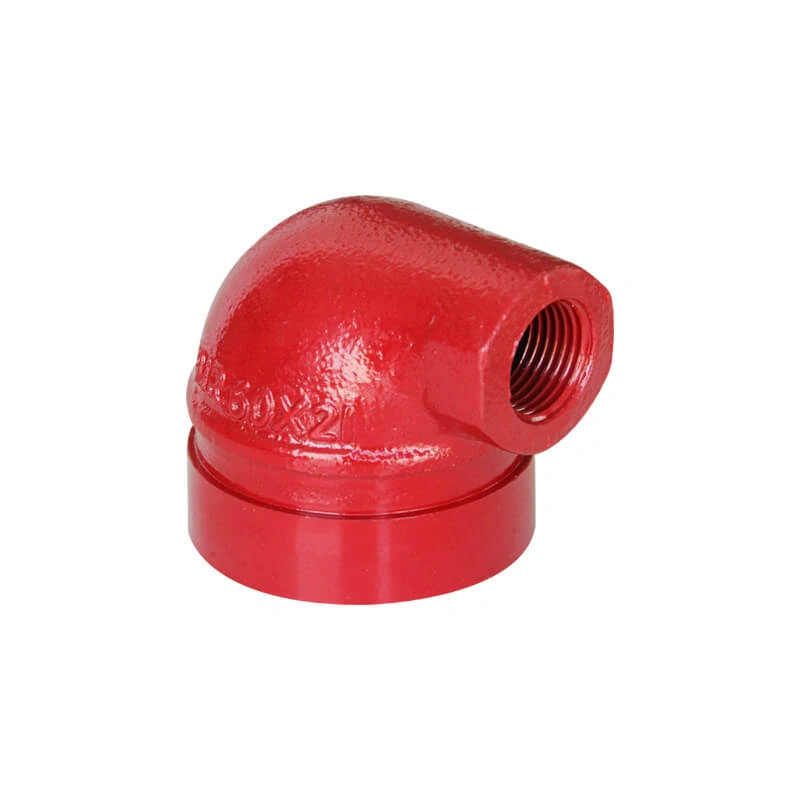

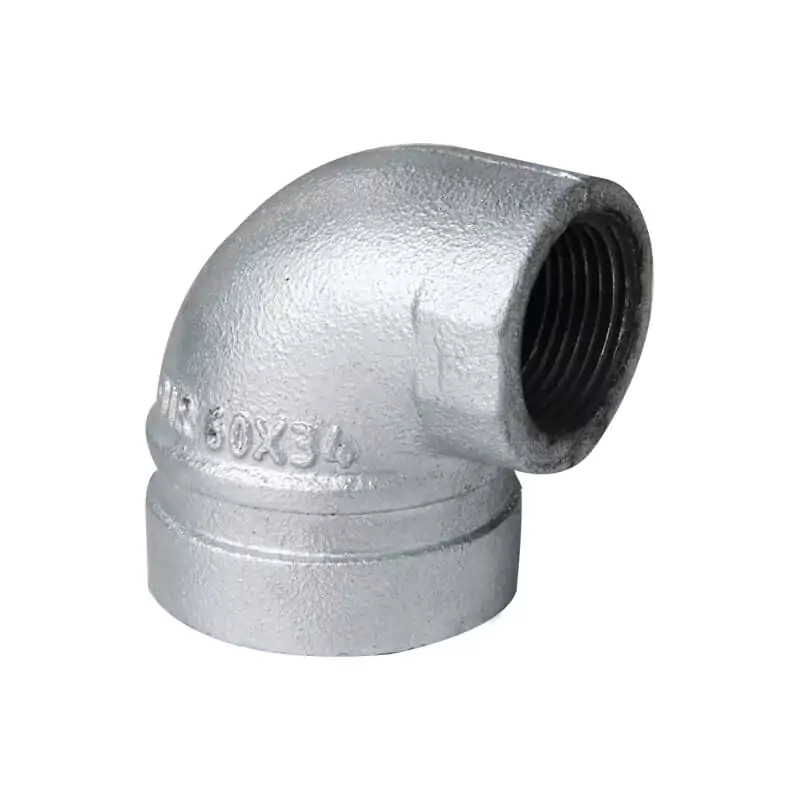

Grooved 90° reducing elbow with female threaded outlet is 90 degree elbow type pipe fitting with groove and reducing female thread connection convertion, and it is used to join two pipes and change the flow direction.
Available size
| Size (Inch / DN / mm) |
Center to end (mm), L1 |
Center to end (mm), L2 |
Ref. No. |
| 1-1/4″ x 1/2″ / 32 x 15 / 42.4 x 21.3 |
35.1 |
44.5 |
G0601 |
| 1-1/4″ x 3/4″ / 32 x 20 / 42.4 x 26.9 |
34.9 |
47.6 |
G0602 |
| 1-1/4″ x 1″ / 32 x 25 / 42.4 x 33.7 |
38.1 |
51.6 |
G0603 |
| 1-1/2″ x 1/2″ / 40 x 15 / 48.3 x 21.3 |
34.9 |
44.5 |
G0604 |
| 1-1/2″ x 3/4″ / 40 x 20 / 48.3 x 26.9 |
34.9 |
47.6 |
G0605 |
| 1-1/2″ x 1″ / 40 x 25 / 48.3 x 33.7 |
38.1 |
51.6 |
G0606 |
| 2″ x 1/2″ / 50 x 15 / 60.3 x 21.3 |
41.4 |
44.5 |
G0607 |
| 2″ x 3/4″ / 50 x 20 / 60.3 x 26.9 |
41.3 |
47.6 |
G0608 |
| 2″ x 1″ / 50 x 25 / 60.3 x 33.7 |
44.5 |
51.6 |
G0609 |
| 2-1/2″ x 3/4″ / 65 x 20 / 73.0 x 26.9 |
46 |
47.6 |
G0610 |
| 2-1/2″ x 1″ / 65 x 25 / 73.0 x 33.7 |
49.2 |
51.6 |
G0611 |
| 3″ x 3/4″ / 80 x 20 / 88.9 x 26.9 |
60.3 |
52.4 |
G0612 |
| 3″ x 1″ / 80 x 25 / 88.9 x 33.7 |
63.5 |
52.4 |
G0613 |
