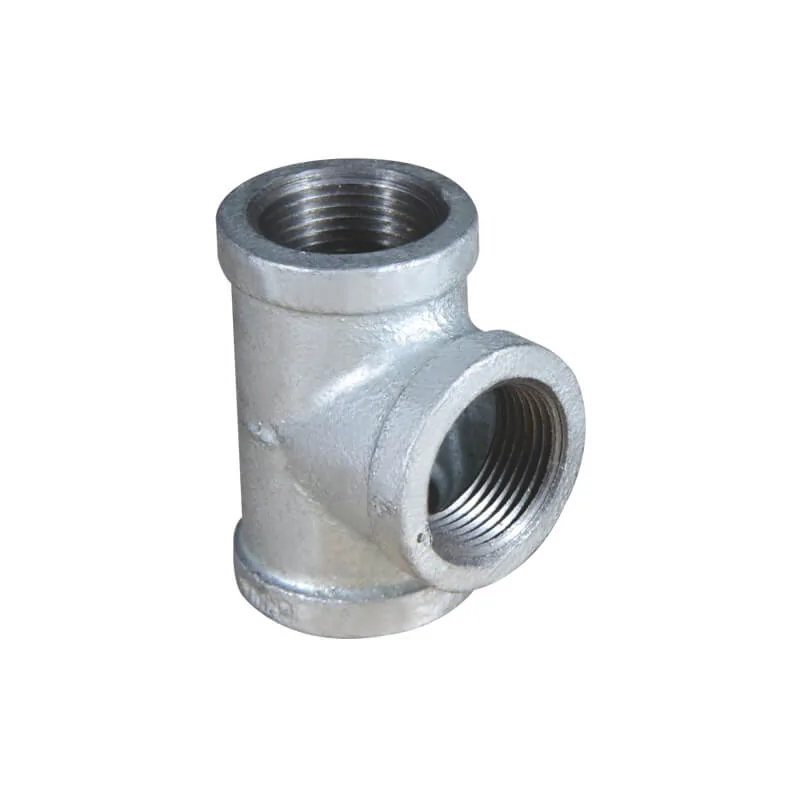

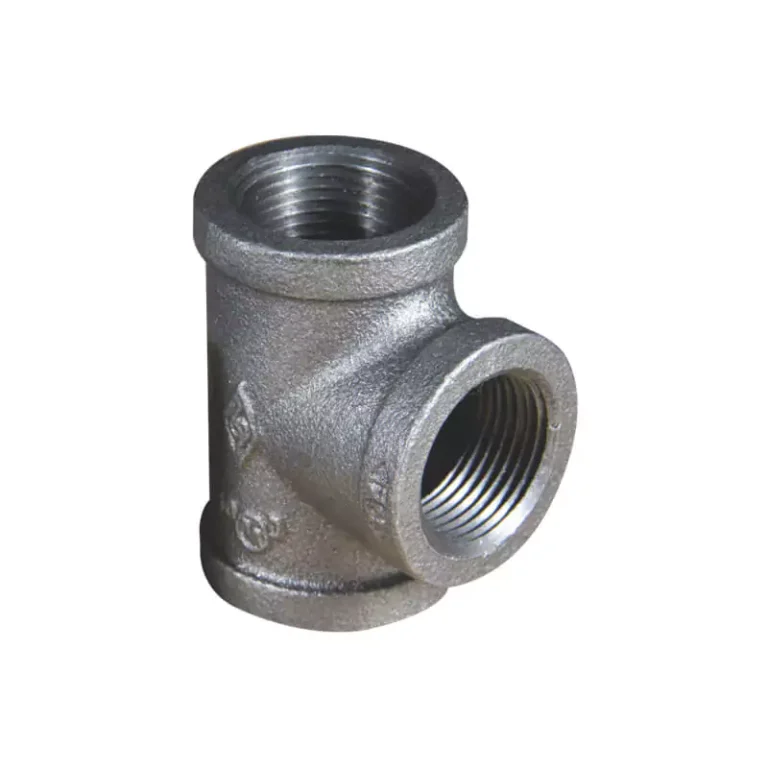

Malleable iron straight tee has a T shape to get its name. The branch outlet has the same size to the main outlets, and it is used to create a branch pipeline to 90-degree direction.
Available size (Class 150)
| Size |
A (mm) |
Ref. No. |
| 1/2″ / DN15 / 21.3mm |
28.5 |
M5903 (UL/FM) |
| 3/4″ / DN20 / 26.7mm |
33.3 |
M5904 (UL/FM) |
| 1″ / DN25 / 33.4mm |
38.1 |
M5905 (UL/FM) |
| 1-1/4″ / DN32 / 42.2mm |
44.5 |
M5906 (UL/FM) |
| 1-1/2″ / DN40 / 48.3mm |
49.3 |
M5907 (UL/FM) |
| 2″ / DN50 / 60.3mm |
57.2 |
M5908 (UL/FM) |
| 2-1/2″ / DN65 / 73.0mm |
68.6 |
M5909 (UL/FM) |
| 3″ / DN80 / 88.9mm |
78.2 |
M5910 (UL/FM) |
| 4″ / DN100 / 114.3mm |
96.3 |
M5911 (UL/FM) |
| 6″ / DN150 / 168.3mm |
130.3 |
M5913 (UL/FM) |
Available size (Class 300)
| Size |
A (mm) |
Ref. No. |
| 1/4″ / DN8 / 13.7mm |
23.9 |
M5901-300 (ISO) |
| 3/8″ / DN10 / 17.1mm |
26.9 |
M5902-300 (ISO) |
| 1/2″ / DN15 / 21.3mm |
31.8 |
M5903-300 (ISO) |
| 3/4″ / DN20 / 26.7mm |
35.6 |
M5904-300 (ISO) |
| 1″ / DN25 / 33.4mm |
41.4 |
M5905-300 (ISO) |
| 1-1/4″ / DN32 / 42.2mm |
49.3 |
M5906-300 (ISO) |
| 1-1/2″ / DN40 / 48.3mm |
54.1 |
M5907-300 (ISO) |
| 2″ / DN50 / 60.3mm |
63.5 |
M5908-300 (ISO) |
| 2-1/2″ / DN65 / 73.0mm |
74.7 |
M5909-300 (ISO) |
| 3″ / DN80 / 88.9mm |
85.9 |
M5910-300 (ISO) |
| 4″ / DN100 / 114.3mm |
114.0 |
M5911-300 (ISO) |
