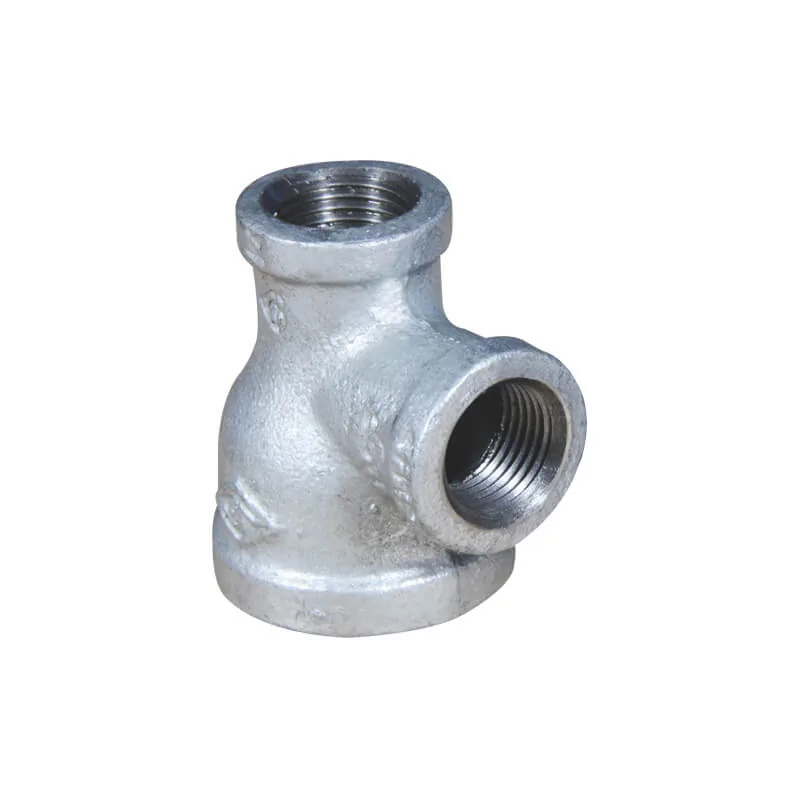

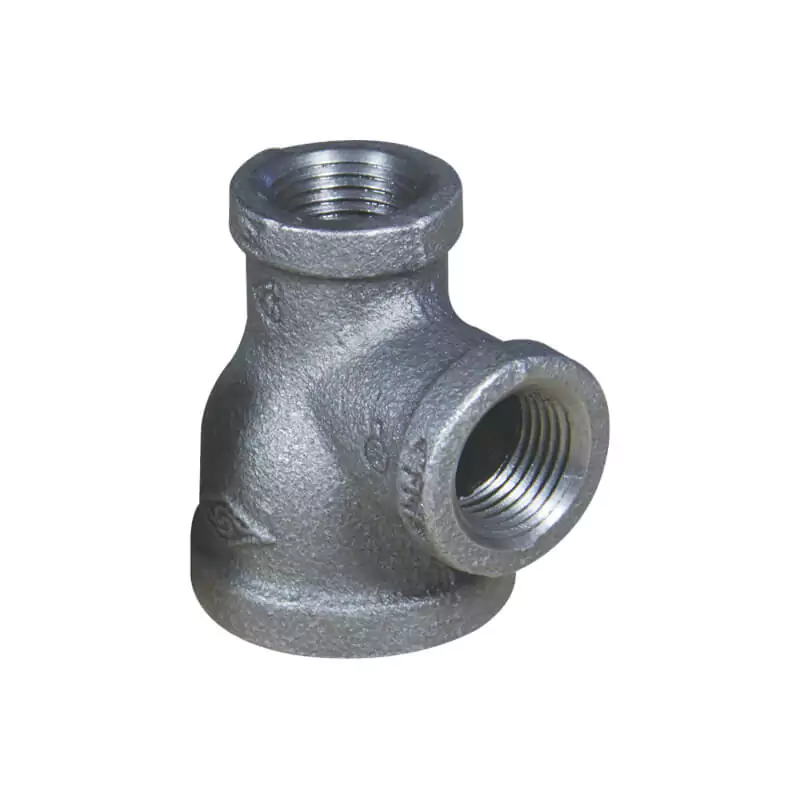

Malleable cast iron reducing tee (Equal minor run and branch) has a T shape to get its name. The branch outlet has the same size to one main outlet, smaller than the other main outlet, and it is used to create a branch pipeline to 90 degree direction.
Available size
| Size (1 x 3 x 2) |
A (mm) |
Ref. No. |
| 3/4″ x 1/2″ x 1/2″ / DN20 x DN15 x DN15 / 26.9mm x 21.3mm x 21.3mm |
30 |
M1210 (UL/FM) |
| 1″ x 1/2″ x 1/2″ / DN25 x DN15 x DN15 / 33.7mm x 21.3mm x 21.3mm |
32 |
M1213 (UL/FM) |
| 1″ x 3/4″ x 3/4″ / DN25 x DN20 x DN20 / 33.7mm x 26.9mm x 26.9mm |
35 |
M1214 (UL/FM) |
| 1-1/4″ x 1/2″ x 1/2″ / DN32 x DN15 x DN15 / 42.4mm x 21.3mm x 21.3mm |
34 |
M1216 (UL/FM) |
| 1-1/4″ x 3/4″ x 3/4″ / DN32 x DN20 x DN20 / 42.4mm x 26.9mm x 26.9mm |
36 |
M1217 (UL/FM) |
| 1-1/4″ x 1″ x 1″ / DN32 x DN25 x DN25 / 42.4mm x 33.7mm x 33.7mm |
40 |
M1218 (UL/FM) |
| 1-1/2″ x 3/4″ x 3/4″ / DN40 x DN20 x DN20 / 48.3mm x 26.9mm x 26.9mm |
38 |
M1222 (UL/FM) |
| 1-1/2″ x 1″ x 1″ / DN40 x DN25 x DN25 / 48.3mm x 33.7mm x 33.7mm |
42 |
M1223 (UL/FM) |
| 1-1/2″ x 1-1/4″ x 1-1/4″ / DN40 x DN32 x DN32 / 48.3mm x 42.4mm x 42.4mm |
46 |
M1224 (UL/FM) |
| 2″ x 1″ x 1″ / DN50 x DN25 x DN25 / 60.3mm x 33.7mm x 33.7mm |
44 |
M1229 (UL/FM) |
| 2″ x 1-1/4″ x 1-1/4″ / DN50 x DN32 x DN32 / 60.3mm x 42.4mm x 42.4mm |
48 |
M1230 (UL/FM) |
| 2″ x 1-1/2″ x 1-1/2″ / DN50 x DN40 x DN40 / 60.3mm x 48.3mm x 48.3mm |
52 |
M1231 (UL/FM) |
| 2-1/2″ x 2″ x 2″ / DN65 x DN50 x DN50 / 76.1mm x 60.3mm x 60.3mm |
61 |
M1237 (UL/FM) |
| 3″ x 2″ x 2″ / DN80 x DN50 x DN50 / 88.9mm x 60.3mm x 60.3mm |
64 |
M1244 (UL/FM) |
Note: NSF 61 certificate is available for M1210 ~ M1244.
