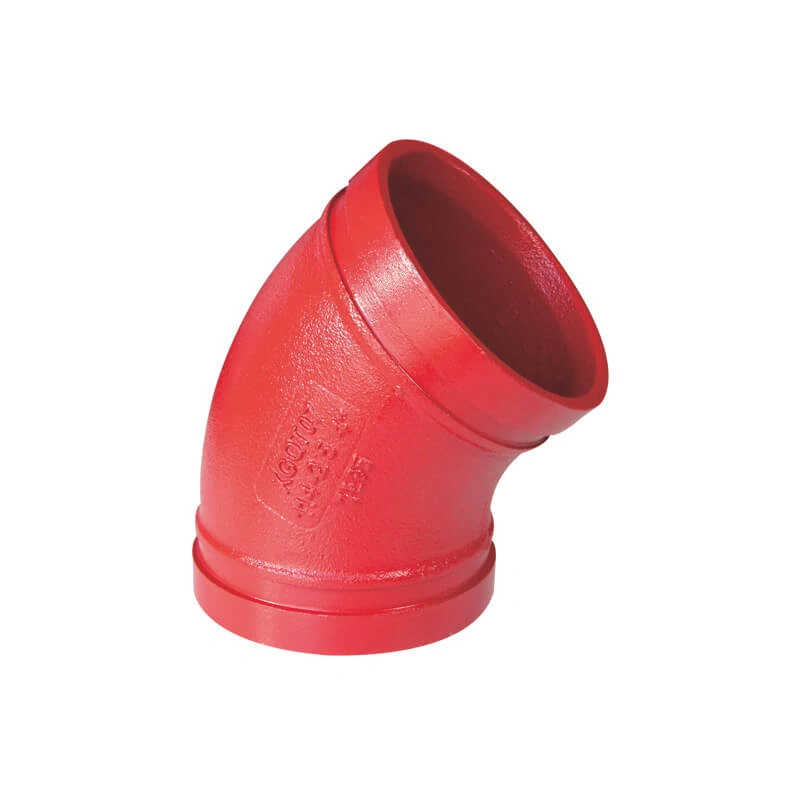

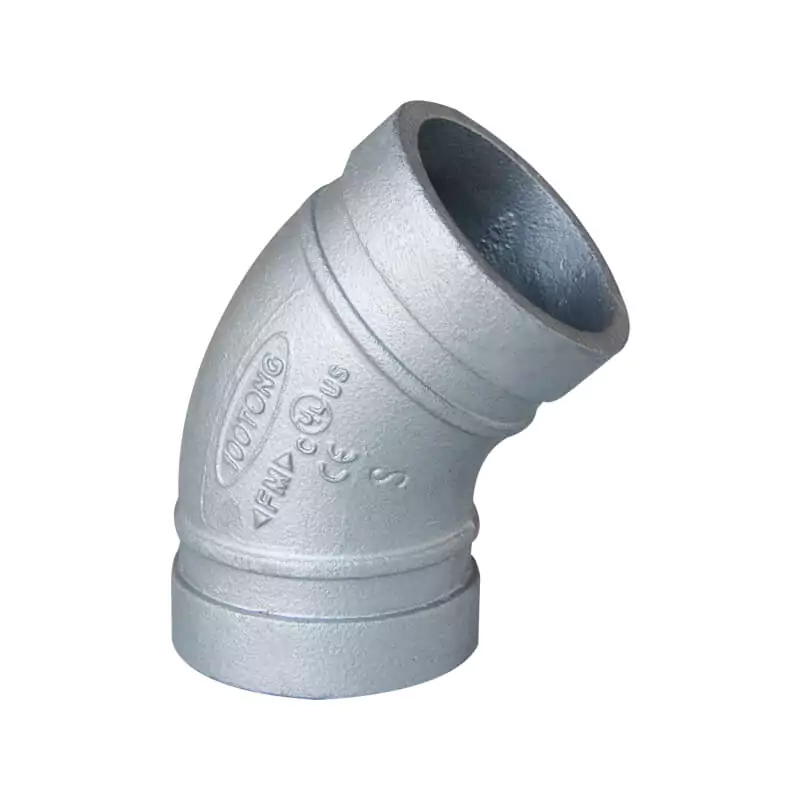

Grooved 45° elbow is used to connect two pipes by groove connection, so to make the pipeline turn 45 degree for changing the fluid flow direction.
Available size
| Size |
Standard radius (mm) |
Long radius (mm) |
Ref. No. |
| 1″ / DN25 / 33.7mm |
45 |
/ |
G0701 (UL/FM) |
| 1-1/4″ / DN32 / 42.4mm |
45 |
/ |
G0702 (UL/FM) |
| 1-1/2″ / DN40 / 48.3mm |
45 |
/ |
G0703 (UL/FM) |
| 2″ / DN50 / 60.3mm |
51 |
70 |
G0704 (UL/FM) |
| 2-1/2″ / DN65 / 73.0mm |
57 |
76 |
G0705 (UL/FM) |
| 2-1/2″ / DN65 / 76.1mm |
57 |
/ |
G0706 (UL/FM) |
| 3″ / DN80 / 88.9mm |
64 |
86 |
G0707 (UL/FM) |
| 4″ / DN100 / 114.3mm |
76 |
102 |
G0708 (UL/FM) |
| 5″ / DN125 / 139.7mm |
83 |
/ |
G0709 (UL/FM) |
| 5″ / DN125 / 141.3mm |
83 |
/ |
G0710 (UL/FM) |
| 6″ / DN150 / 165.1mm |
89 |
/ |
G0711 (UL/FM) |
| 6″ / DN150 / 168.3mm |
89 |
140 |
G0712 (UL/FM) |
| 8″ / DN200 / 219.1mm |
108 |
184 |
G0713 (UL/FM) |
| 10″ / DN250 / 273.0mm |
121 |
159 |
G0714 (UL/FM) |
| 12″ / DN300 / 323.9mm |
133 |
191 |
G0715 (UL/FM) |
