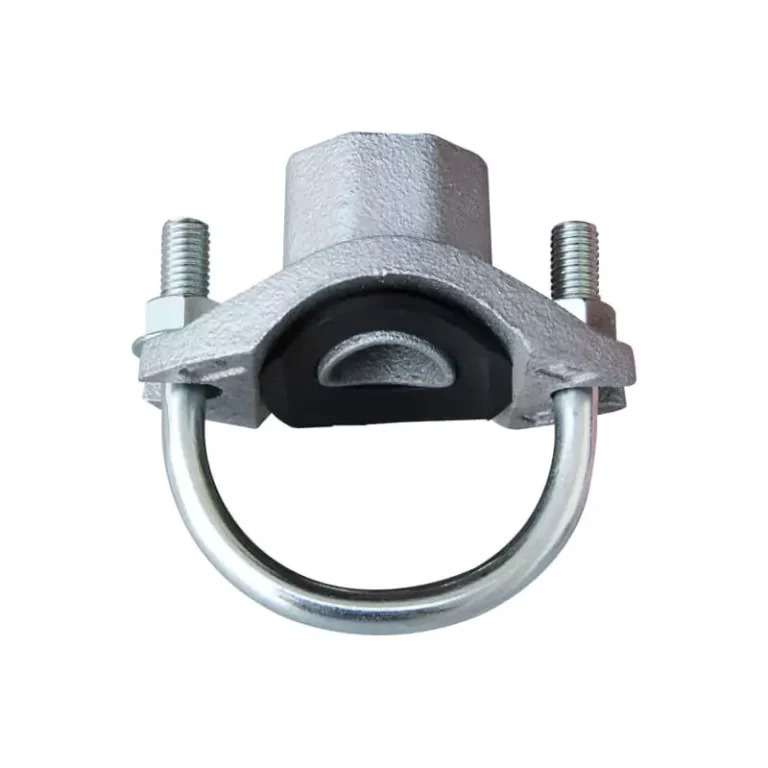

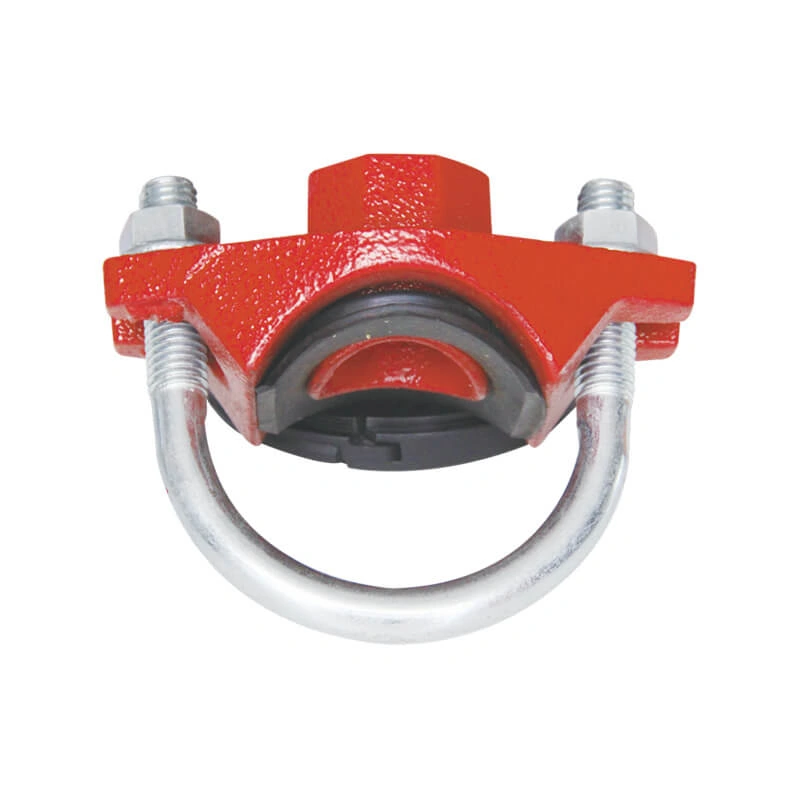

U-bolt mechanical tee with threaded branch provides an additional threaded outlet in existing pipeline, by simply connecting the pre-set hole at the main pipe surface.
Available size (Source 1)
| Size (Inch / DN / mm) |
Bolting (n x bolt size), ANSI |
Bolting (n x bolt size), EN |
Ref. No. |
| 1″ x 1/2″ / 25 x 15 / 33.7 x 21.3 |
3/8″ x 25 |
M10 x 25 |
G7701 (UL/FM) |
| 1″ x 3/4″ / 25 x 20 / 33.7 x 26.9 |
3/8″ x 25 |
M10 x 25 |
G7702 (UL/FM) |
| 1″ x 1″ / 25 x 25 / 33.7 x 33.7 |
3/8″ x 28.5 |
M10 x 28.5 |
G7703 (ISO) |
| 1-1/4″ x 1/2″ / 32 x 15 / 42.4 x 21.3 |
3/8″ x 28.5 |
M10 x 28.5 |
G7704 (UL/FM) |
| 1-1/4″ x 3/4″ / 32 x 20 / 42.4 x 26.9 |
3/8″ x 28.5 |
M10 x 28.5 |
G7705 (UL/FM) |
| 1-1/4″ x 1″ / 32 x 25 / 42.4 x 33.7 |
3/8″ x 28.5 |
M10 x 28.5 |
G7706 (UL/FM) |
| 1-1/2″ x 1/2″ / 40 x 15 / 48.3 x 21.3 |
3/8″ x 28.5 |
M10 x 28.5 |
G7707 (UL/FM) |
| 1-1/2″ x 3/4″ / 40 x 20 / 48.3 x 26.9 |
3/8″ x 28.5 |
M10 x 28.5 |
G7708 (UL/FM) |
| 1-1/2″ x 1″ / 40 x 25 / 48.3 x 33.7 |
3/8″ x 28.5 |
M10 x 28.5 |
G7709 (FM) |
| 1-1/2″ x 1″ / 40 x 25 / 48.3 x 33.7 |
3/8″ x 28.5 |
M10 x 28.5 |
G7710 (UL/FM) |
| 2″ x 1/2″ / 50 x 15 / 60.3 x 21.3 |
3/8″ x 30 |
M10 x 30 |
G7711 (UL/FM) |
| 2″ x 3/4″ / 50 x 20 / 60.3 x 26.9 |
3/8″ x 30 |
M10 x 30 |
G7712 (UL/FM) |
| 2″ x 1″ / 50 x 25 / 60.3 x 33.7 |
3/8″ x 30 |
M10 x 30 |
G7713 (FM) |
| 2″ x 1″ / 50 x 25 / 60.3 x 33.7 |
3/8″ x 30 |
M10 x 30 |
G7714 (UL/FM) |
| 2-1/2″ x 1/2″ / 65 x 15 / 73.0 x 21.3 |
3/8″ x 30 |
M10 x 30 |
G7715 (UL/FM) |
Note: Please download our catalog for more available sizes.
