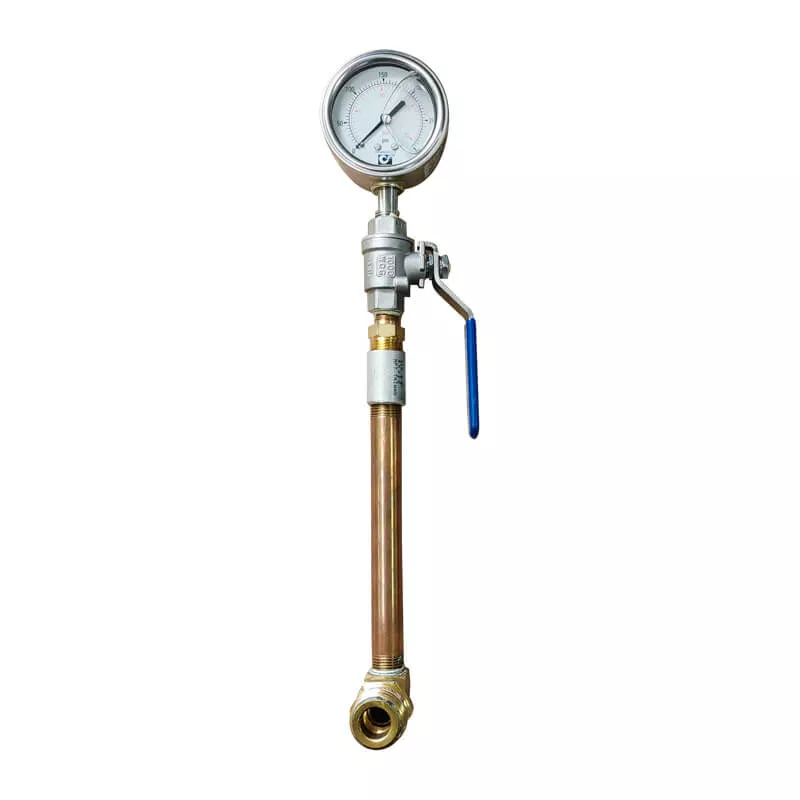

Pressure gauge connection assembly
- Certificate: ISO
- Standard: Refer to UL 393
- Construction: A pressure gauge, a stainless steel ball valve, and matched copper or stainless steel tubing
- Function: To equip with PRV to read inlet or outlet pressure value
- Temperature: 0°C to 500°C
- W. pressure: 300 psi
The pressure gauge connection assembly, comprising a pressure gauge, ball valve, and copper or stainless steel tubing, is designed to read the inlet and outlet pressures of the pressure reducing valve. It can also be connected to other valves that have a plug on the body. The assembly is pre-assembled to avoid on-site assembly and save time.
Available size
Note: The standard pressure gauge and ball valve are ISO certified. UL/FM approved ones are available as an option.
