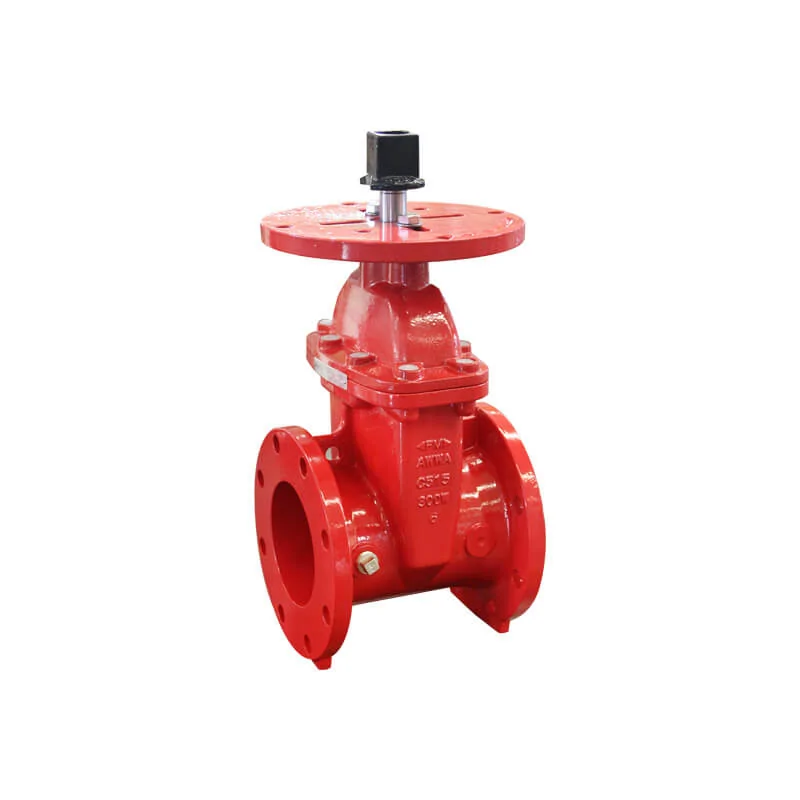

American Flanged NRS gate valve with post flange and wrench nut
- Certificate: UL Listed / FM Approved
- Standard: UL 262 / AWWA C515, C509
- Connection: Flanged as B16.1 Class 125, B16.5 Class 150,
- Mechanical joint as ANSI/AWWA C153/A21.53 etc.
- Post flange: Dia 12″, PCD 10-1/2″, bolt hole 4 x 3/4″
- Temperature: 0°C to 80°C
- W. pressure: 250 / 300 / 363 psi
- Surface: FBE coating as AWWA C550
Flanged NRS gate valve with post flange and wrench nut means Non Rising Stem gate valve by flanged connection. It operates by turning the wrench nut through vertical or wall indicator post, which could indicate the valve open/closed position. The stem does not move up or down as it turns to open and close the gate.
Available size
Note: For size 4″ to 12″ with working pressure 300 psi, it is also available with flanged connection as per EN 1092-2 PN 16.
