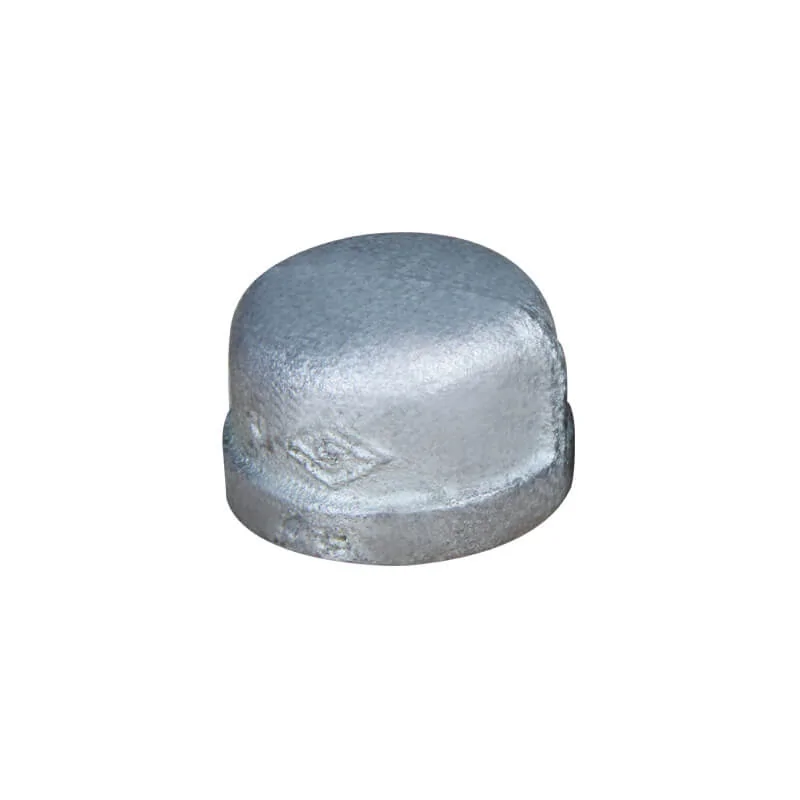

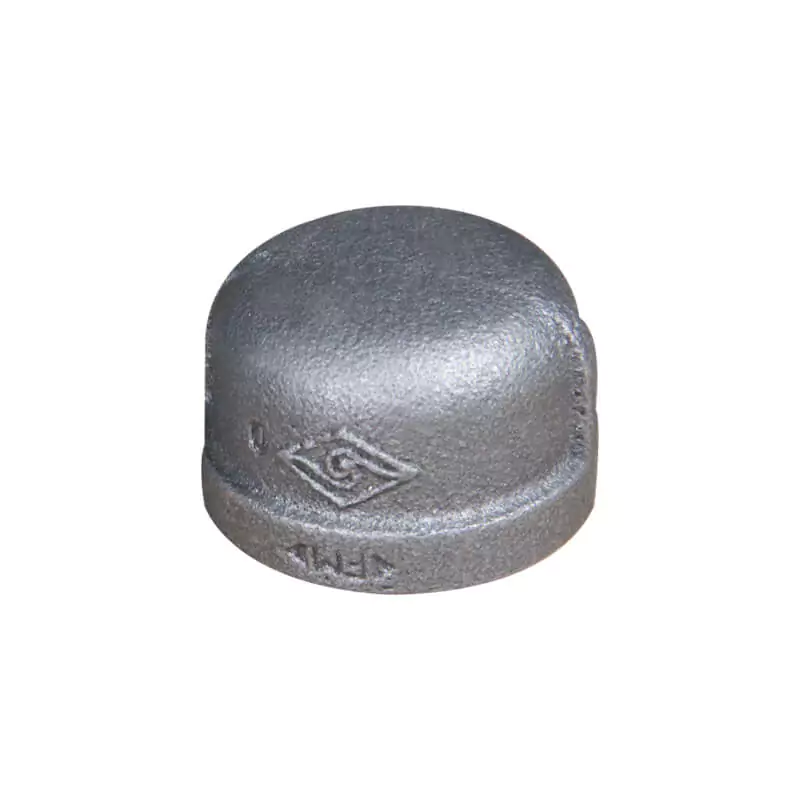

Malleable iron cap (Recessed) is used to mount at the pipe end by female threaded connection, so to block the pipeline and form liquid or gas tight seal.
Available size (Class 150)
| Size |
A (mm) |
Ref. No. |
| 1/2″ / DN15 / 21.3mm |
22.1 |
M8403 (UL/FM) |
| 3/4″ / DN20 / 26.7mm |
24.6 |
M8404 (UL/FM) |
| 1″ / DN25 / 33.4mm |
29.5 |
M8405 (UL/FM) |
| 1-1/4″ / DN32 / 42.2mm |
32.5 |
M8406 (UL/FM) |
| 1-1/2″ / DN40 / 48.3mm |
33.8 |
M8407 (UL/FM) |
| 2″ / DN50 / 60.3mm |
36.8 |
M8408 (UL/FM) |
| 2-1/2″ / DN65 / 73.0mm |
43.2 |
M8409 (UL/FM) |
| 3″ / DN80 / 88.9mm |
45.7 |
M8410 (UL/FM) |
| 4″ / DN100 / 114.3mm |
52.8 |
M8411 (UL/FM) |
| 5″ / DN125 / 141.3mm |
58.9 |
M8412 (UL/FM) |
| 6″ / DN150 / 168.3mm |
64.8 |
M8413 (UL/FM) |
Available size (Class 300)
| Size |
A (mm) |
Ref. No. |
| 1/4″ / DN8 / 13.7mm |
19.8 |
M8401-300 (ISO) |
| 3/8″ / DN10 / 17.1mm |
21.1 |
M8402-300 (ISO) |
| 1/2″ / DN15 / 21.3mm |
24.9 |
M8403-300 (ISO) |
| 3/4″ / DN20 / 26.7mm |
27.4 |
M8404-300 (ISO) |
| 1″ / DN25 / 33.4mm |
32.0 |
M8405-300 (ISO) |
| 1-1/4″ / DN32 / 42.2mm |
35.1 |
M8406-300 (ISO) |
| 1-1/2″ / DN40 / 48.3mm |
36.3 |
M8407-300 (ISO) |
| 2″ / DN50 / 60.3mm |
42.7 |
M8408-300 (ISO) |
| 2-1/2″ / DN65 / 73.0mm |
52.3 |
M8409-300 (ISO) |
| 3″ / DN80 / 88.9mm |
55.1 |
M8410-300 (ISO) |
| 4″ / DN100 / 114.3mm |
60.5 |
M8411-300 (ISO) |
