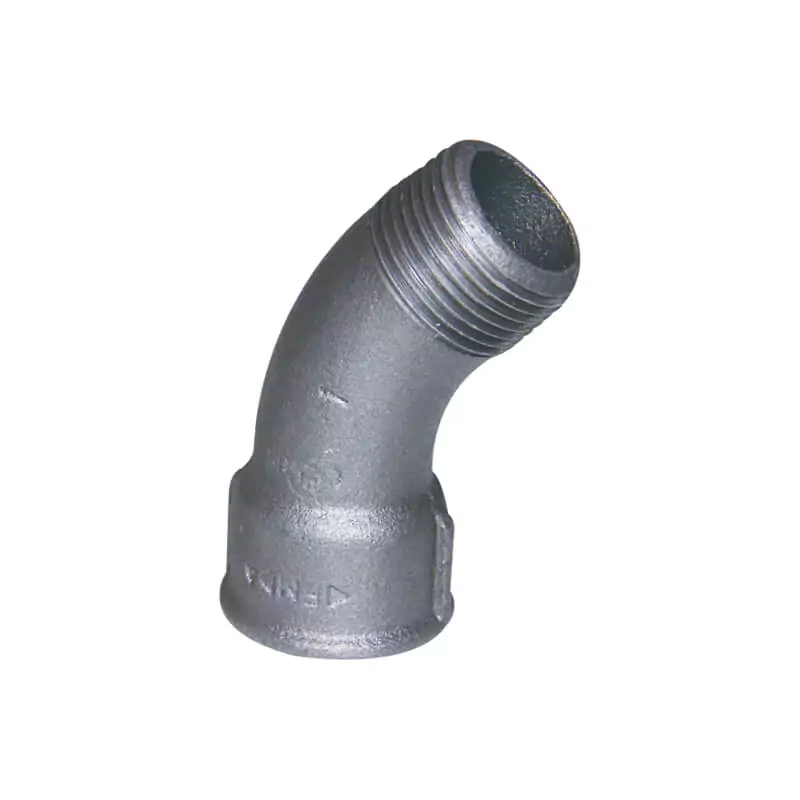

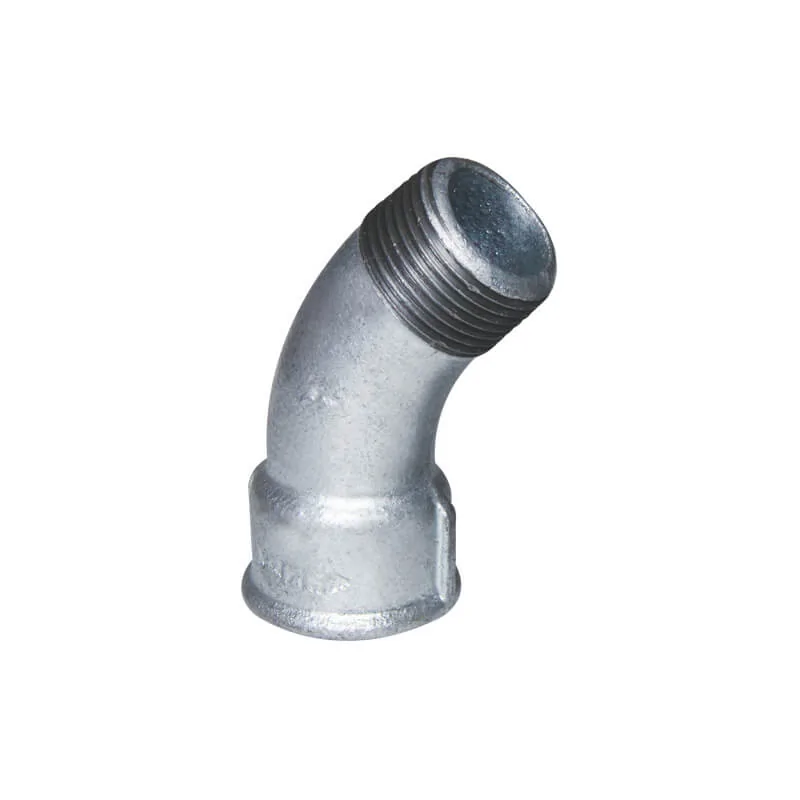

Malleable cast iron 45° male and female long sweep bend
- Certificate: UL Listed / FM Approved
- Standard: ISO 49 / EN 10242, symbol C
- Material: BS EN 1562, EN-GJMB-350-10
- Thread: BSPT
- W. pressure: 20 ~ 25 bar, ≤PN25
- Surface: Black iron / hot dip galvanized
Malleable cast iron 45° male and female long sweep bend is similar to 45° male and female elbow but with a large radius, so it does not abruptly turn the corner of pipeline.
