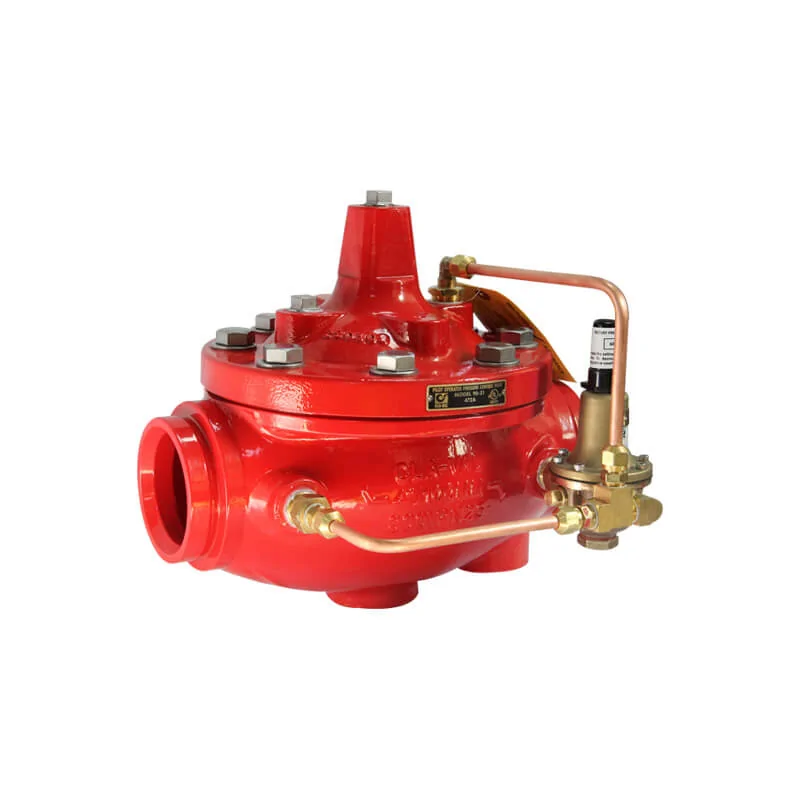

Grooved globe type pressure reducing valve is globe type pilot-operated pressure control valve used in sprinkler and standpipe systems with grooved connection. It automatically reduces a higher inlet pressure to a steady lower outlet pressure, without changing flow rate and inlet pressure.
Available size (Source 1 with UL)
| Size |
Pressure adjustment (psi) |
Connection |
Working pressure (psi) |
Ref. No. |
| 1-1/2″ / DN40 |
50 ~ 175 |
Grooved |
300 |
V6201 (UL) |
| 2″ / DN50 |
30 ~ 165 |
Grooved |
300 |
V6202 (UL) |
| 2-1/2″ / DN65 |
50 ~ 175 |
Grooved |
300 |
V6203 (UL) |
| 3″ / DN80 |
50 ~ 175 |
Grooved |
300 |
V6204 (UL) |
| 4″ / DN100 |
50 ~ 175 |
Grooved |
300 |
V6205 (UL) |
| 6″ / DN150 |
50 ~ 175 |
Grooved |
300 |
V6207 (UL) |
| 8″ / DN200 |
50 ~ 175 |
Grooved |
300 |
V6208 (UL) |
Note:
1. As factory preset, the reducing pressure is set at 60 psi.
2. The two (2) pressure gauge connection assemblies are not included. See detail V99.
Available size (Source 1 with FM)
| Size |
Pressure adjustment (psi) |
Connection |
Working pressure (psi) |
Ref. No. |
| 2″ / DN50 |
30 ~ 250 |
Grooved |
365 |
V6202 (FM) |
| 2-1/2″ / DN65 |
30 ~ 250 |
Grooved |
365 |
V6203 (FM) |
| 3″ / DN80 |
30 ~ 250 |
Grooved |
365 |
V6204 (FM) |
| 4″ / DN100 |
30 ~ 250 |
Grooved |
365 |
V6205 (FM) |
| 6″ / DN150 |
30 ~ 250 |
Grooved |
365 |
V6207 (FM) |
Note:
1. As factory preset, the reducing pressure is set at 60 psi.
2. The two (2) pressure gauge connection assemblies are not included. See detail V99.
Available size (Source 2 with UL)
| Size |
Pressure adjustment (psi) |
Connection |
Working pressure (psi) |
Ref. No. |
| 1-1/2″ / DN40 |
65 ~ 165 |
Grooved |
300 |
V6221 (UL) |
| 2″ / DN50 |
65 ~ 165 |
Grooved |
300 |
V6222 (UL) |
| 2-1/2″ / DN65 |
65 ~ 165 |
Grooved |
300 |
V6223 (UL) |
| 3″ / DN80 |
65 ~ 165 |
Grooved |
300 |
V6224 (UL) |
| 4″ / DN100 |
65 ~ 165 |
Grooved |
300 |
V6225 (UL) |
| 5″ / DN125 |
65 ~ 165 |
Grooved |
300 |
V6226 (UL) |
| 6″ / DN150 |
65 ~ 165 |
Grooved |
300 |
V6227 (UL) |
| 8″ / DN200 |
65 ~ 165 |
Grooved |
300 |
V6228(UL) |
| 10″ / DN250 |
65 ~ 165 |
Grooved |
300 |
V6229 (UL) |
Note:
1. As factory preset, the reducing pressure is set at 65 psi.
2. The two (2) pressure gauge connection assemblies are not included. See detail V99.
Available size (Source 2 with FM)
| Size |
Pressure adjustment (psi) |
Connection |
Working pressure (psi) |
Ref. No. |
| 2″ / DN50 |
65 ~ 165 |
Grooved |
300 |
V6222 (FM) |
| 2-1/2″ / DN65 |
65 ~ 165 |
Grooved |
300 |
V6223 (FM) |
| 3″ / DN80 |
65 ~ 165 |
Grooved |
300 |
V6224 (FM) |
| 4″ / DN100 |
65 ~ 165 |
Grooved |
300 |
V6225 (FM) |
| 5″ / DN125 |
65 ~ 165 |
Grooved |
300 |
V6226 (FM) |
| 6″ / DN150 |
65 ~ 165 |
Grooved |
300 |
V6227 (FM) |
| 8″ / DN200 |
65 ~ 165 |
Grooved |
300 |
V6228 (FM) |
| 10″ / DN250 |
65 ~ 165 |
Grooved |
300 |
V6229 (FM) |
Note:
1. As factory preset, the reducing pressure is set at 65 psi.
2. The two (2) pressure gauge connection assemblies are not included. See detail V99.
Available size (Source 3 with UL/FM)
| Size |
Pressure adjustment (psi) |
Connection |
Working pressure (psi) |
Ref. No. |
| 2″ / DN50 |
80 ~ 175 |
Grooved |
300 |
V6242 (UL/FM) |
| 3″ / DN80 |
80 ~ 175 |
Grooved |
300 |
V6244 (UL/FM) |
| 4″ / DN100 |
90 ~ 175 |
Grooved |
300 |
V6245 (UL/FM) |
| 6″ / DN150 |
80 ~ 175 |
Grooved |
300 |
V6247 (UL/FM) |
| 8″ / DN200 |
80 ~ 175 |
Grooved |
300 |
V6248 (UL/FM) |
Note:
1. As factory preset, the reducing pressure is set at 125 psi.
2. The two (2) pressure gauge connection assemblies are included. See detail V99.
Available size (Source 5 with UL/FM)
| Size |
Pressure adjustment (psi) |
Connection |
Working pressure (psi) |
Ref. No. |
| 1-1/2″ / DN40 |
60 ~ 175 |
Grooved |
365 |
V6281 (UL/FM) |
| 2″ / DN50 |
60 ~ 175 |
Grooved |
365 |
V6282 (UL/FM) |
| 2-1/2″ / DN65 |
60 ~ 175 |
Grooved |
365 |
V6283 (UL/FM) |
| 3″ / DN80 |
60 ~ 175 |
Grooved |
365 |
V6284 (UL/FM) |
| 4″ / DN100 |
60 ~ 175 |
Grooved |
365 |
V6285 (UL/FM) |
| 6″ / DN150 |
60 ~ 175 |
Grooved |
365 |
V6287 (UL/FM) |
| 8″ / DN200 |
60 ~ 175 |
Grooved |
365 |
V6288 (UL/FM) |
Note:
1. As factory preset, the reducing pressure is set at 60 psi.
2. The two (2) pressure gauge connection assemblies are not included. See detail V99.
