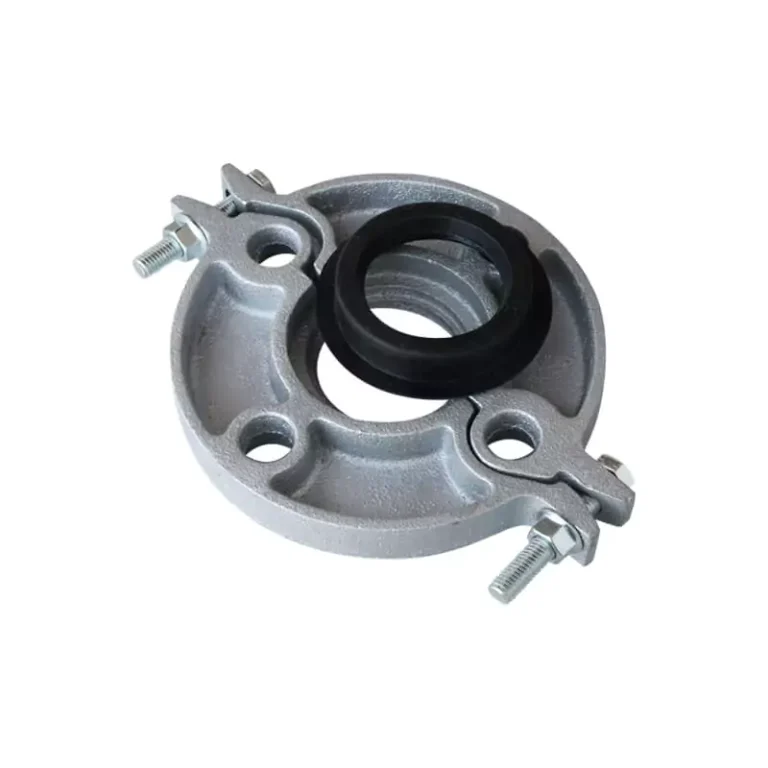

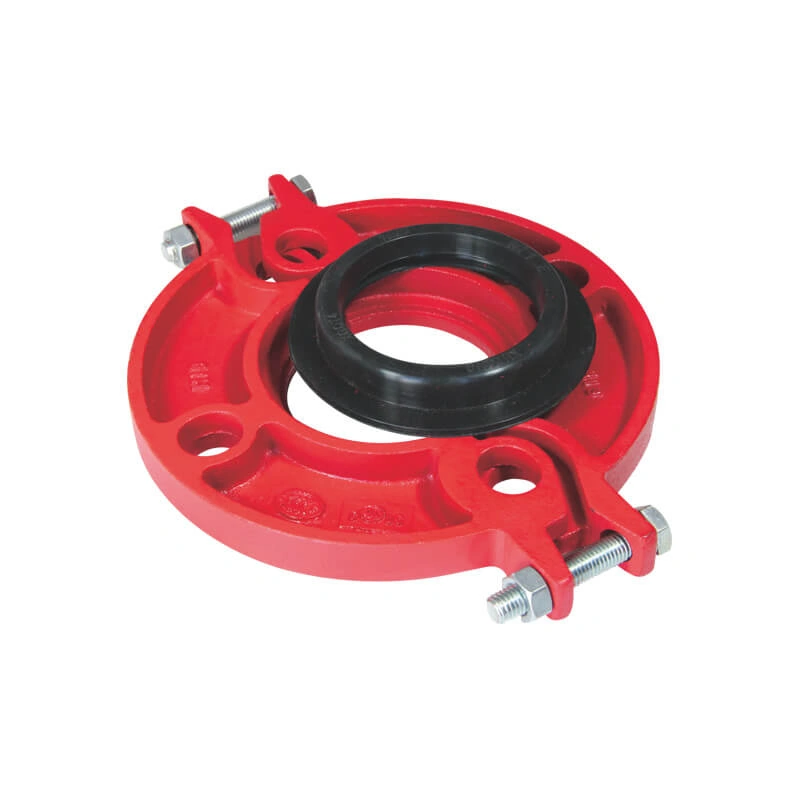

ANSI grooved flange two-piece (Flanged adapter)
- Certificate: UL Listed / FM Approved
- Standard: ANSI / UL 213C
- Housing: Ductile iron ASTM A536, 65-45-12
- Bolt & nut: Carbon steel, detail as G92 ~ G96
- Gasket: EPDM, nitrile, silicone rubber, etc.
- Mating flange: ANSI B16.1 Class 125, B16.42 Class 150, FF, RF, MF, etc.
- Rated pressure: 300 ~ 500 psi
- Surface: Red painting / hot dip galvanized
ANSI grooved flange two-piece (Flanged adapter) is designed for direct connection of flanged components into a grooved component, no need extra groove coupling.
Available size
Note: Please download our catalog for more available sizes.
