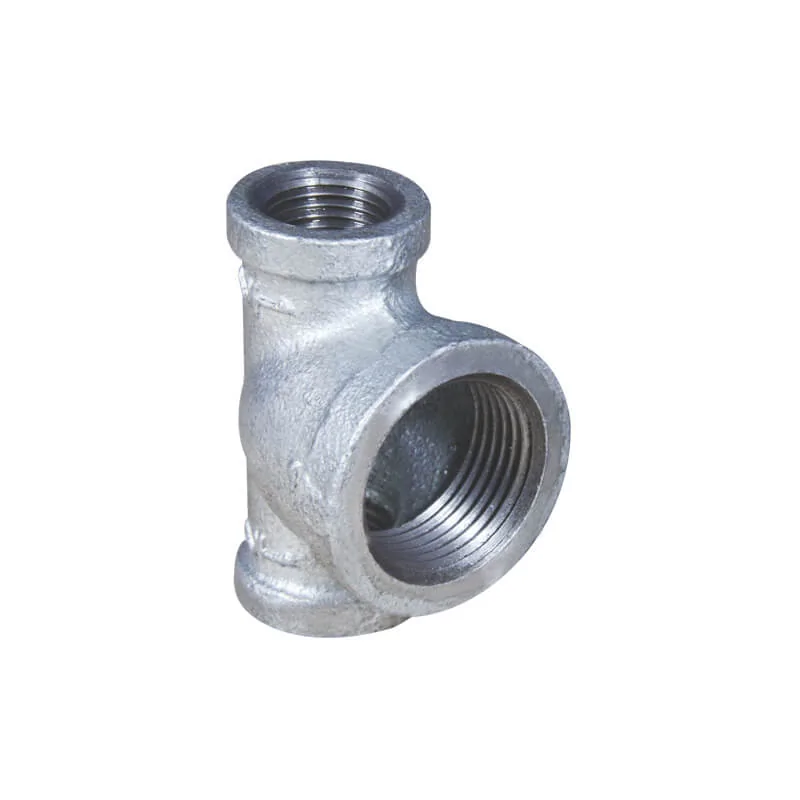

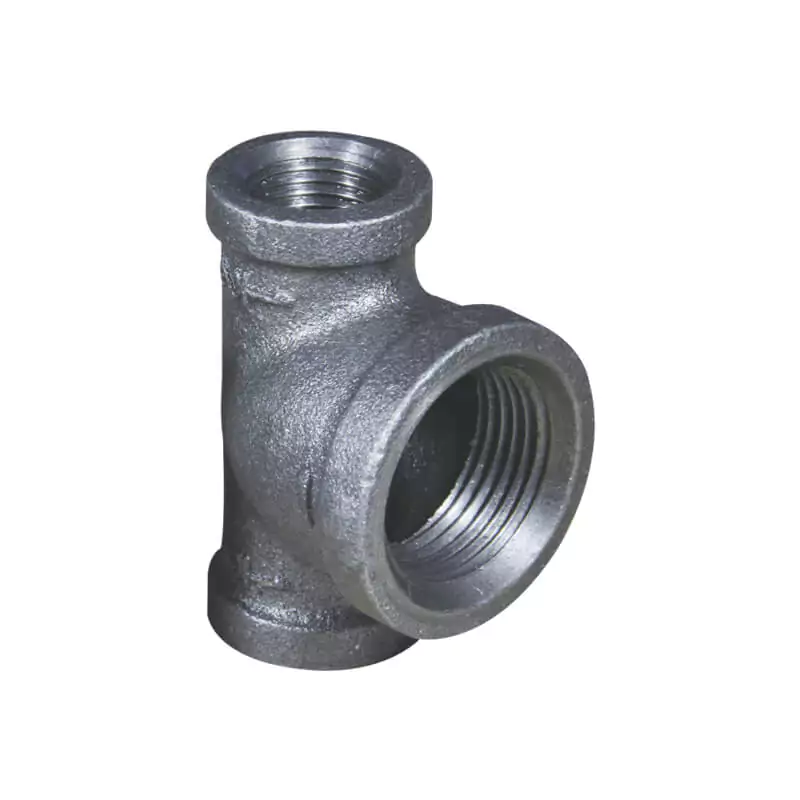

Malleable iron reducing tee (Bull head tee) has a T shape to get its name. The branch outlet has a larger size than the main outlets, and it is used to create a branch pipeline to 90-degree direction.
Available size (Class 150)
| Size |
A (mm) |
B (mm) |
Ref. No. |
| 1/2″ x 1/2″ x 3/4″ / DN15 x DN15 x DN20 / 21.3mm x 21.3mm x 26.7mm |
31.0 |
30.5 |
M6110 (UL/FM) |
| 1/2″ x 1/2″ x 1″ / DN15 x DN15 x DN25 / 21.3mm x 21.3mm x 33.4mm |
34.6 |
32.0 |
M6113 (UL/FM) |
| 3/4″ x 3/4″ x 1″ / DN20 x DN20 x DN25 / 26.7mm x 26.7mm x 33.4mm |
36.8 |
34.8 |
M6114 (UL/FM) |
| 3/4″ x 3/4″ x 1-1/4″ / DN20 x DN20 x DN32 / 26.7mm x 26.7mm x 42.2mm |
41.2 |
36.8 |
M6117 (ISO) |
| 1″ x 1″ x 1-1/4″ / DN25 x DN25 x DN32 / 33.4mm x 33.4mm x 42.2mm |
42.4 |
40.1 |
M6118 (UL/FM) |
| 1″ x 1″ x 1-1/2″ / DN25 x DN25 x DN40 / 33.4mm x 33.4mm x 48.3mm |
45.7 |
41.9 |
M6123 (UL/FM) |
| 1″ x 1″ x 2″ / DN25 x DN25 x DN50 / 33.4mm x 33.4mm x 60.3mm |
51.3 |
48.9 |
M6129 (UL/FM) |
| 1-1/4″ x 1-1/4″ x 1-1/2″ / DN32 x DN32 x DN40 / 42.2mm x 42.2mm x 48.3mm |
47.8 |
46.2 |
M6124 (UL/FM) |
| 1-1/4″ x 1-1/4″ x 2″ / DN32 x DN32 x DN50 / 42.2mm x 42.2mm x 60.3mm |
53.3 |
48.3 |
M6130 (UL/FM) |
| 1-1/2″ x 1-1/2″ x 2″ / DN40 x DN40 x DN50 / 48.3mm x 48.3mm x 60.3mm |
54.9 |
51.3 |
M6131 (UL/FM) |
| 2″ x 2″ x 2-1/2″ / DN50 x DN50 x DN65 / 60.3mm x 60.3mm x 73.0mm |
66.0 |
60.7 |
M6137 (UL/FM) |
