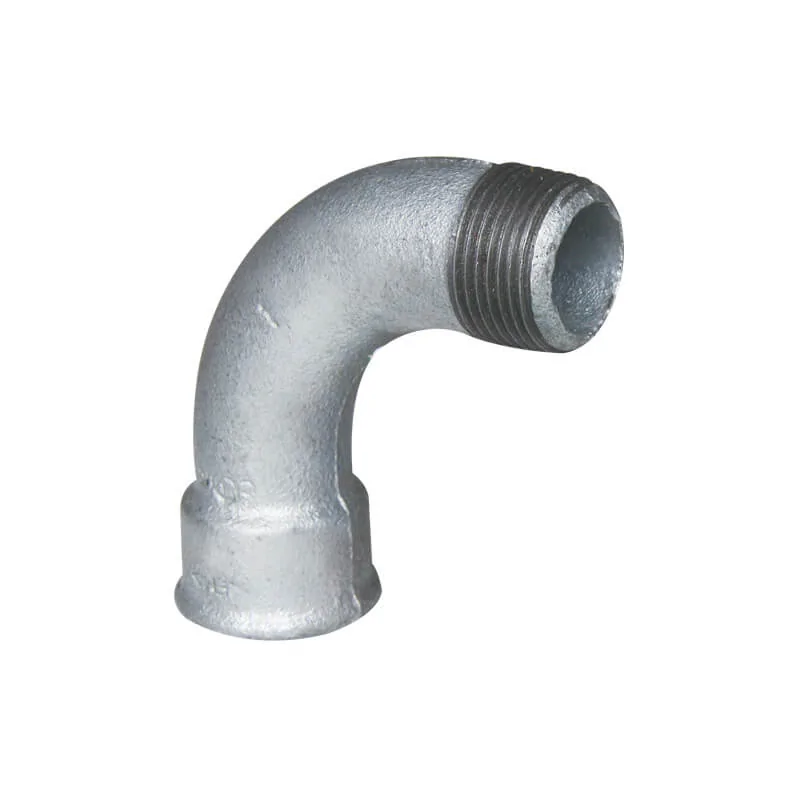

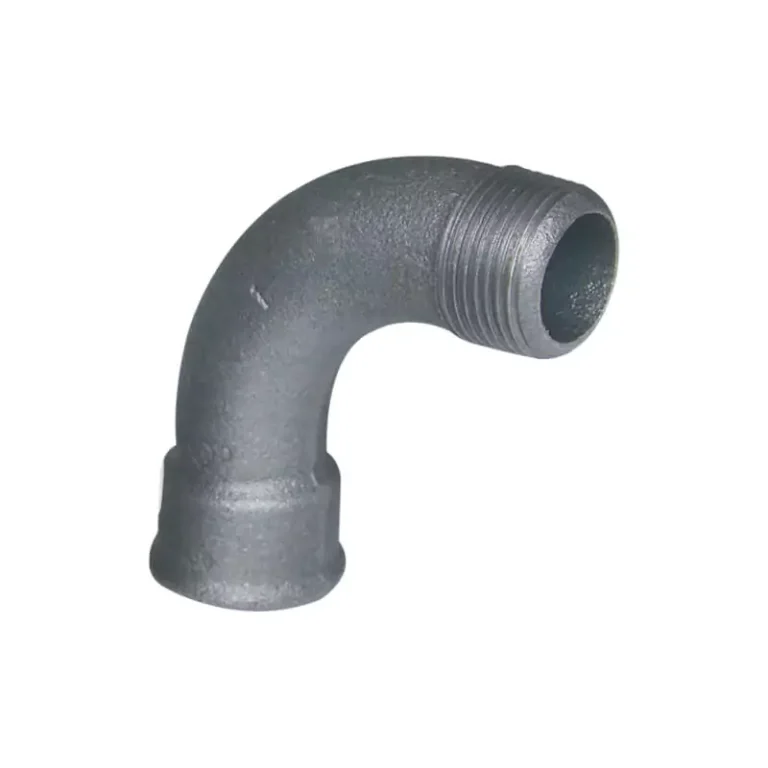

Malleable cast iron male and female 90° long sweep bend
- Certificate: UL Listed / FM Approved / NSF 61
- Standard: ISO 49 / EN 10242, symbol C
- Material: BS EN 1562, EN-GJMB-350-10
- Thread: BSPT
- W. pressure: 20 ~ 25 bar, ≤PN25
- Surface: Black iron / hot dip galvanized
Malleable cast iron male and female 90° long sweep bend is similar to 90° male and female elbow but with a large radius, so it does not abruptly turn the corner of pipeline.
Available size
Note: NSF 61 certificate is available for M4502 ~ M4511, except M4501, M4513.
