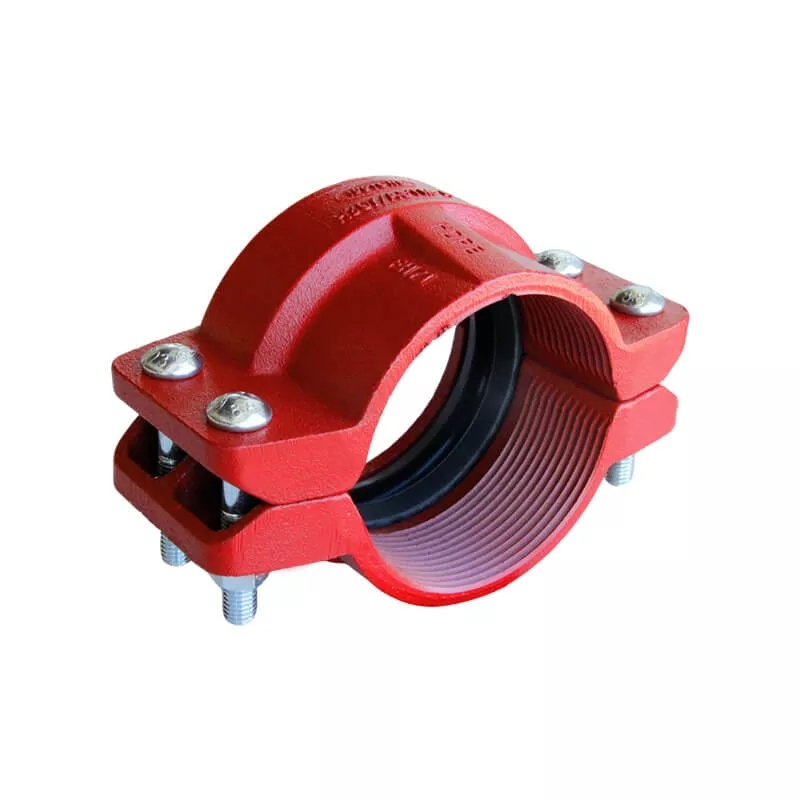

HDPE-to-steel transition coupling
- Certificate: ISO
- Standard: Refer to ANSI / UL 213
- Housing: Ductile iron ASTM A536, 65-45-12
- Bolt & nut: CS or SS (See Detail G92 ~ G96)
- Gasket: EPDM, nitrile, etc. (See Detail G91)
- Connection: Plain end HDPE pipe x grooved end steel pipe
- Surface: Red painting
HDPE-to-steel transition coupling provides a cost-effective and easy-to-assemble mechanical solution for connecting plain end HDPE pipe to grooved steel pipe, eliminating the need for butt fusion. It utilizes 4 bolts to drive sharp teeth that bite into the HDPE pipe and engage a keyed section with the steel groove, creating a secure, rigid connection. The unique design positions the teeth away from the gasket to ensure reliable sealing. Additionally, the low-profile housing with ramps allows it to slide over obstacles, making this coupling ideal for pipeline relocation projects.
