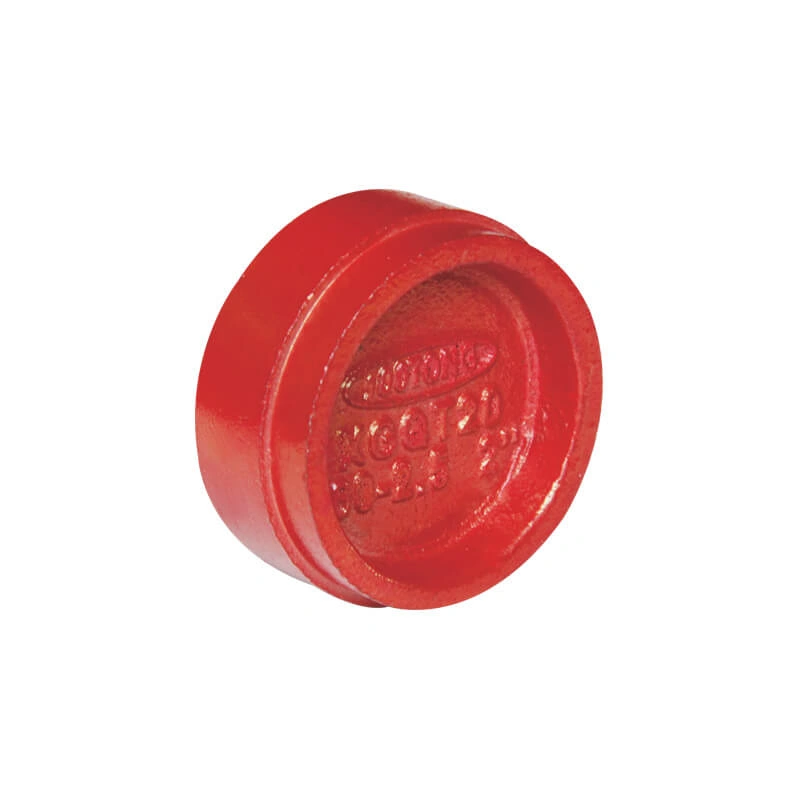

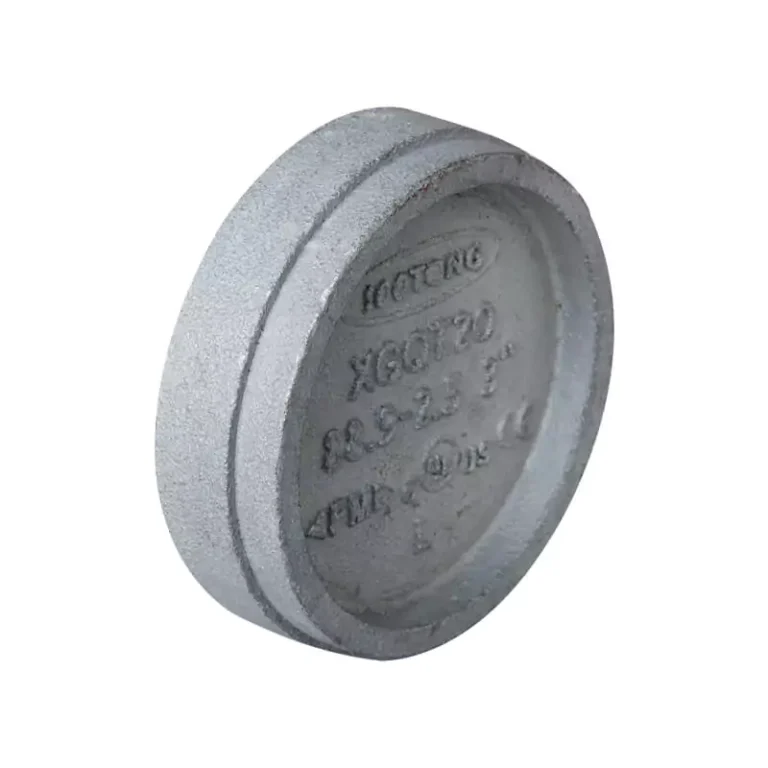

Grooved end cap is used to mount at the pipe end by groove connection, so to block the pipeline and form liquid or gas tight seal.
Available size
| Size |
End to end (mm) |
Ref. No. |
| 1″ / DN25 / 33.7mm |
22 |
G4001 (UL/FM) |
| 1-1/4″ / DN32 / 42.4mm |
24 |
G4002 (UL/FM) |
| 1-1/2″ / DN40 / 48.3mm |
24 |
G4003 (UL/FM) |
| 2″ / DN50 / 60.3mm |
24 |
G4004 (UL/FM) |
| 2-1/2″ / DN65 / 73mm |
24 |
G4005 (UL/FM) |
| 2-1/2″ / DN65 / 76.1mm |
24 |
G4006 (UL/FM) |
| 3″ / DN80 / 88.9mm |
24 |
G4007 (UL/FM) |
| 4″ / DN100 / 114.3mm |
27 |
G4008 (UL/FM) |
| 5″ / DN125 / 139.7mm |
27 |
G4009 (UL/FM) |
| 5″ / DN125 / 141.3mm |
27 |
G4010 (UL/FM) |
| 6″ / DN150 / 165.1mm |
27 |
G4011 (UL/FM) |
| 6″ / DN150 / 168.3mm |
27 |
G4012 (UL/FM) |
| 8″ / DN200 / 219.1mm |
30 |
G4013 (UL/FM) |
| 10″ / DN250 / 273mm |
32 |
G4014 (UL/FM) |
| 12″ / DN300 / 323.9mm |
32 |
G4015 (UL/FM) |
| 14″ / DN350 / 355.6mm |
165 |
G4016 (UL) |
