Flanged NRS gate valve means Non Rising Stem gate valve by flanged connection. It operates by opening and closing via a gate type valve disc, and the stem does not move up or down as it turns to open and close the gate.

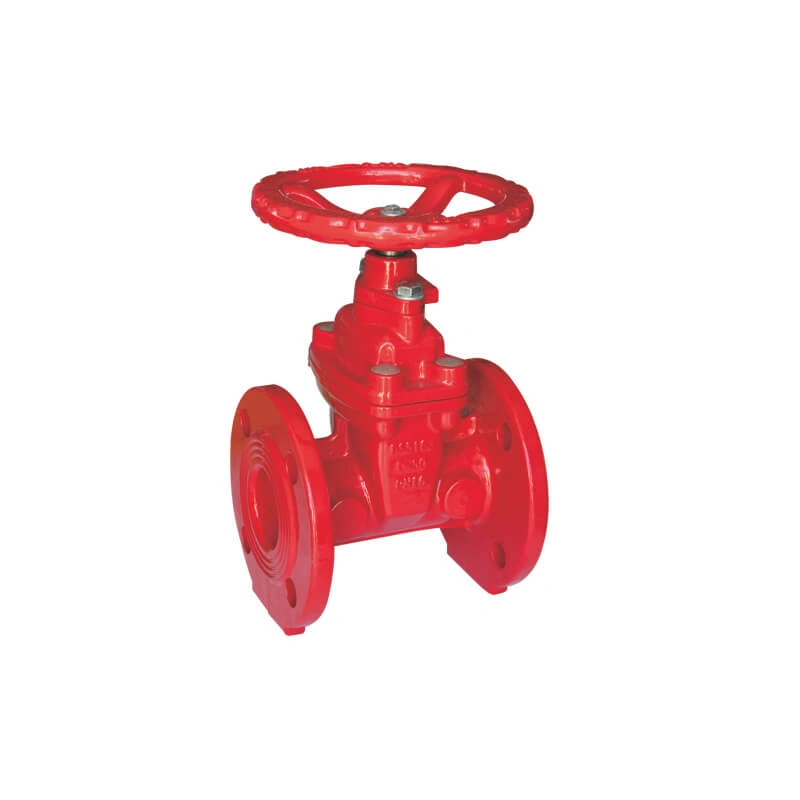

Available size (Without position indicator)
| Size |
L (mm) |
Working pressure |
Ref. No. |
| 2″ / DN 50 / 60.3mm |
178 |
PN 16 |
V0401 (FM) |
| 2-1/2″ / DN 65 / 76.1mm |
190 |
PN 16 |
V0402 (UL/FM) |
| 3″ / DN 80 / 88.9mm |
203 |
PN 16 |
V0403 (UL/FM) |
| 4″ / DN 100 / 114.3mm |
229 |
PN 16 |
V0404 (UL/FM) |
| 5″ / DN 125 / 139.7mm |
254 |
PN 16 |
V0405 (UL/FM) |
| 6″ / DN 150 / 165.1mm |
267 |
PN 16 |
V0406 (UL/FM) |
| 8″ / DN 200 / 219.1mm |
292 |
PN 16 |
V0407 (UL/FM) |
| 10″ / DN 250 / 273mm |
330 |
PN 16 |
V0408 (UL/FM) |
| 12″ / DN 300 / 323.9mm |
356 |
PN 16 |
V0409 (UL/FM) |
| 14″ / DN 350 / 355.6mm |
381 |
PN 16 |
V0410 (UL/FM) |
| 16″ / DN 400 / 406.4mm |
406 |
PN 16 |
V0411 (UL/FM) |
| 18″ / DN 450 / 457mm |
432 |
PN 16 |
V0412 (UL/FM) |
| 20″ / DN 500 / 508mm |
457 |
PN 16 |
V0413 (UL/FM) |
| 24″ / DN 600 / 610mm |
508 |
PN 16 |
V0414 (UL/FM) |

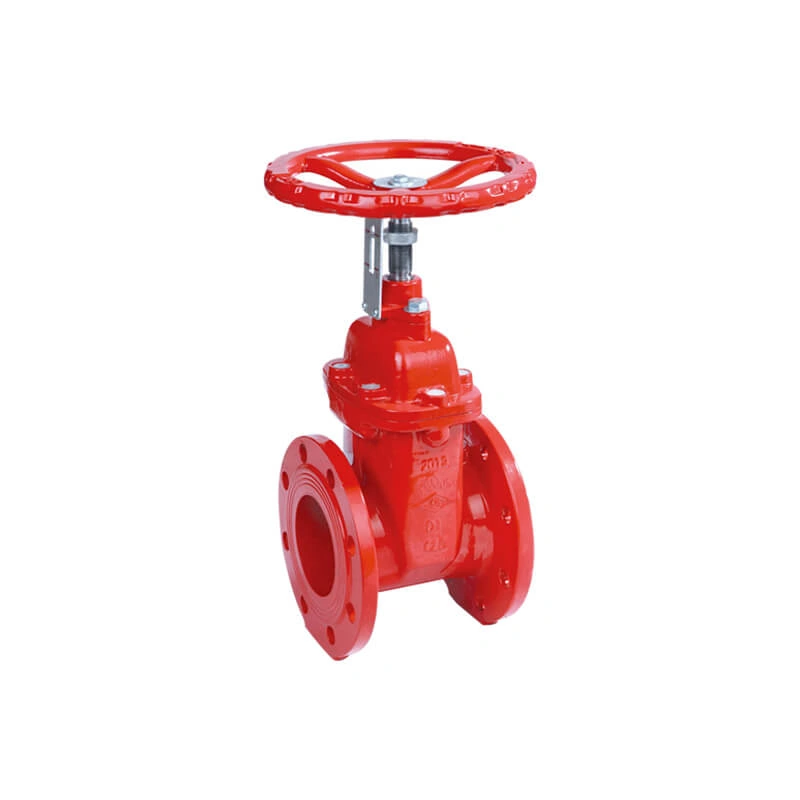

Available size (With position indicator)
| Size |
L (mm) |
Working pressure |
Ref. No. |
| 2″ / DN 50 / 60.3mm |
178 |
PN 16 / PN 25 |
V0421 (FM) |
| 2-1/2″ / DN 65 / 76.1mm |
190 |
PN 16 / PN 25 |
V0422 (UL/FM) |
| 3″ / DN 80 / 88.9mm |
203 |
PN 16 / PN 25 |
V0423 (UL/FM) |
| 4″ / DN 100 / 114.3mm |
229 |
PN 16 / PN 25 |
V0424 (UL/FM) |
| 5″ / DN 125 / 139.7mm |
254 |
PN 16 / PN 25 |
V0425 (UL/FM)* |
| 6″ / DN 150 / 165.1mm |
267 |
PN 16 / PN 25 |
V0426 (UL/FM) |
| 8″ / DN 200 / 219.1mm |
292 |
PN 16 / PN 25 |
V0427 (UL/FM) |
| 10″ / DN 250 / 273mm |
330 |
PN 16 |
V0428 (UL/FM) |
| 12″ / DN 300 / 323.9mm |
356 |
PN 16 |
V0429 (UL/FM) |
Note: * For size 5″ with working pressure PN 16, it is only UL listed, not FM approved.

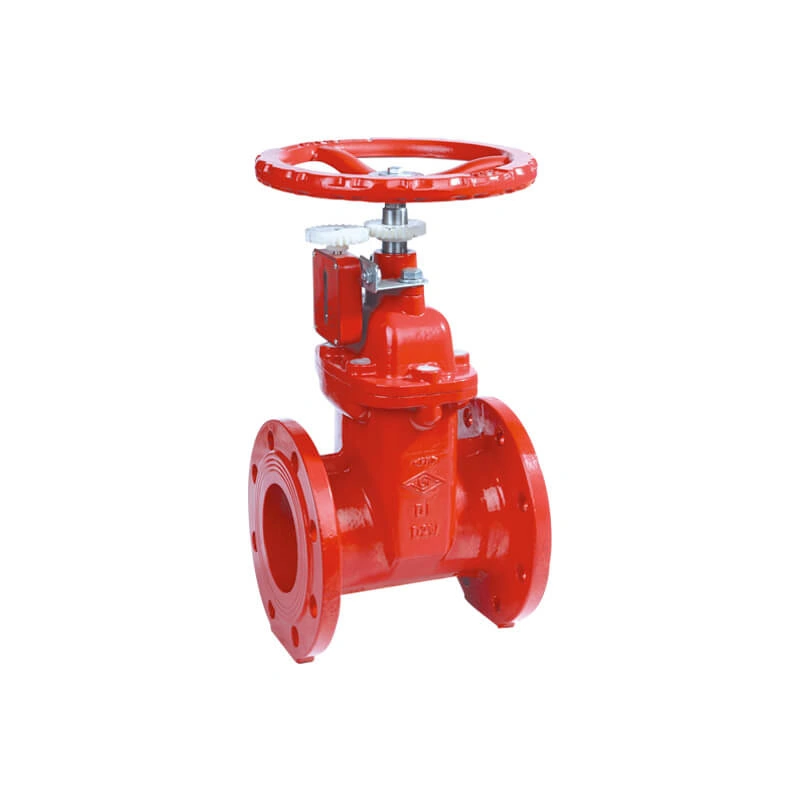

Available size (With electrical position indicator)
| Size |
L (mm) |
Working pressure |
Ref. No. |
| 2″ / DN 50 / 60.3mm |
178 |
PN 16 |
V0441 (ISO) |
| 2-1/2″ / DN 65 / 76.1mm |
190 |
PN 16 |
V0442 (ISO) |
| 3″ / DN 80 / 88.9mm |
203 |
PN 16 |
V0443 (ISO) |
| 4″ / DN 100 / 114.3mm |
229 |
PN 16 |
V0444 (ISO) |
| 5″ / DN 125 / 139.7mm |
254 |
PN 16 |
V0445 (ISO) |
| 6″ / DN 150 / 165.1mm |
267 |
PN 16 |
V0446 (ISO) |
| 8″ / DN 200 / 219.1mm |
292 |
PN 16 |
V0447 (ISO) |
| 10″ / DN 250 / 273mm |
330 |
PN 16 |
V0448 (ISO) |
| 12″ / DN 300 / 323.9mm |
356 |
PN 16 |
V0449 (ISO) |
