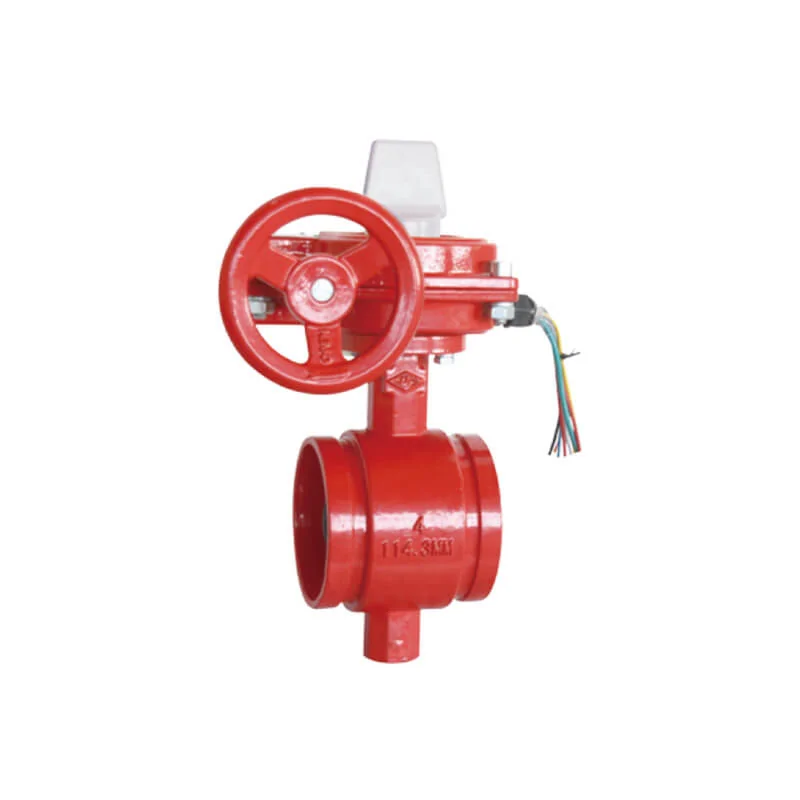

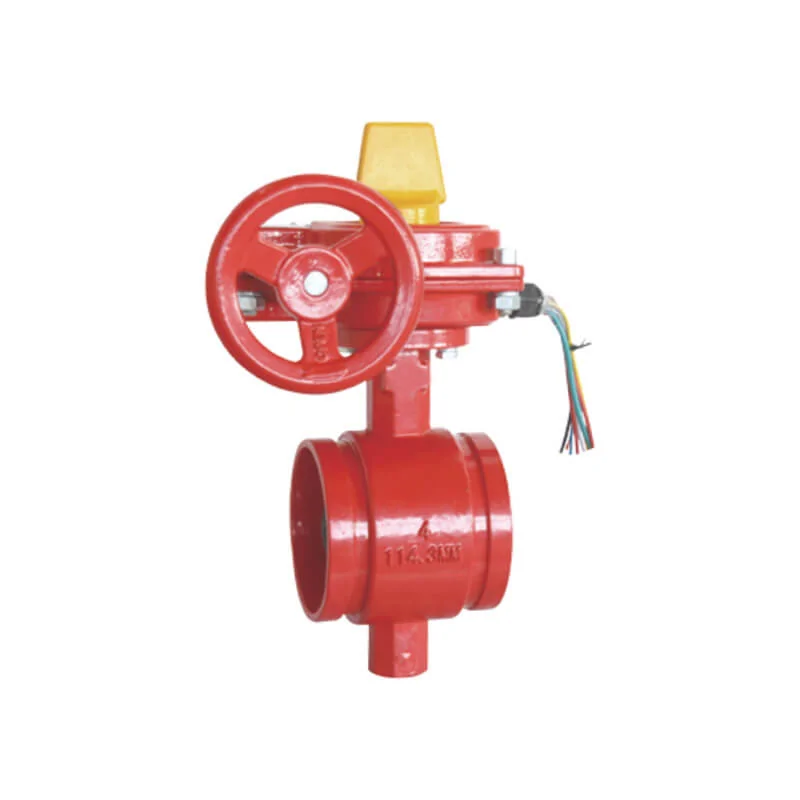

American Grooved butterfly valve (Gear actuator & tamper switch)
- Certificate: UL Listed / FM Approved
- Standard: UL 1091 / MSS SP-67
- Connection: Grooved as AWWA C606
- Contact rating: 16A at 125/250VAC; 0.5A at 250VDC; 10A at 36VDC
- Temperature: 0°C to 80°C
- W. pressure: 300 / 363 psi
- Surface: FBE coating as AWWA C550
Grooved butterfly valve (Gear actuator & tamper switch) is light weight valve with signal gearbox, and it is grooved connection. The valve is fully open or closed when the disc is rotated a quarter turn.
Available size (Normally open)
Note: Please download our catalog for more available sizes.
