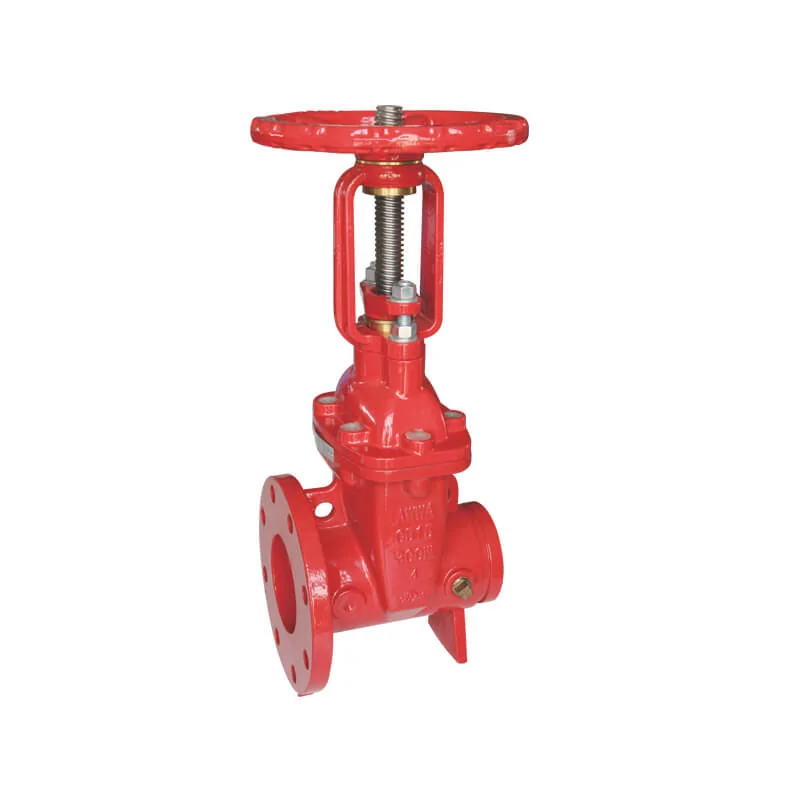

American Flanged x Grooved OS&Y gate valve
- Certificate: UL Listed / FM Approved
- Standard: UL 262 / AWWA C515, C509
- Connection: Flanged as B16.1 Class 125 / B16.5 Class 150 + Grooved as AWWA C606
- Temperature: 0°C to 80°C
- W. pressure: 300 psi
- Surface: FBE coating as AWWA C550
Flanged x Grooved OS&Y gate valve means Outside Stem and Yoke (or Outside Screw and Yoke) gate valve by flanged and grooved connection conversion. It operates by opening and closing via a gate type valve disc. And raising the gate allows water to flow through the valve while lowering the gate cuts off the water flowing through the valve.
Available size
Note: It is also available with flanged connection as per EN 1092-2 PN 16.
